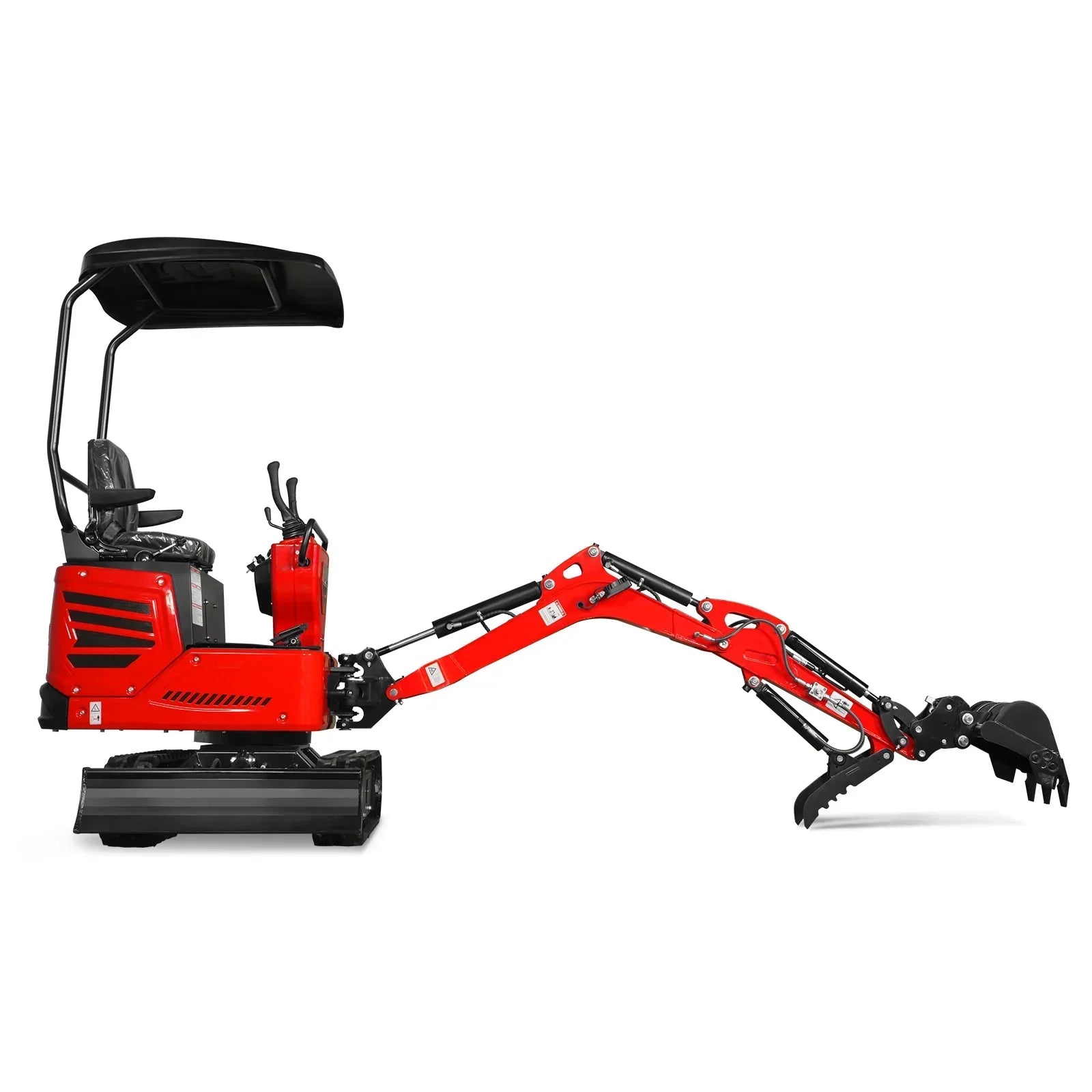

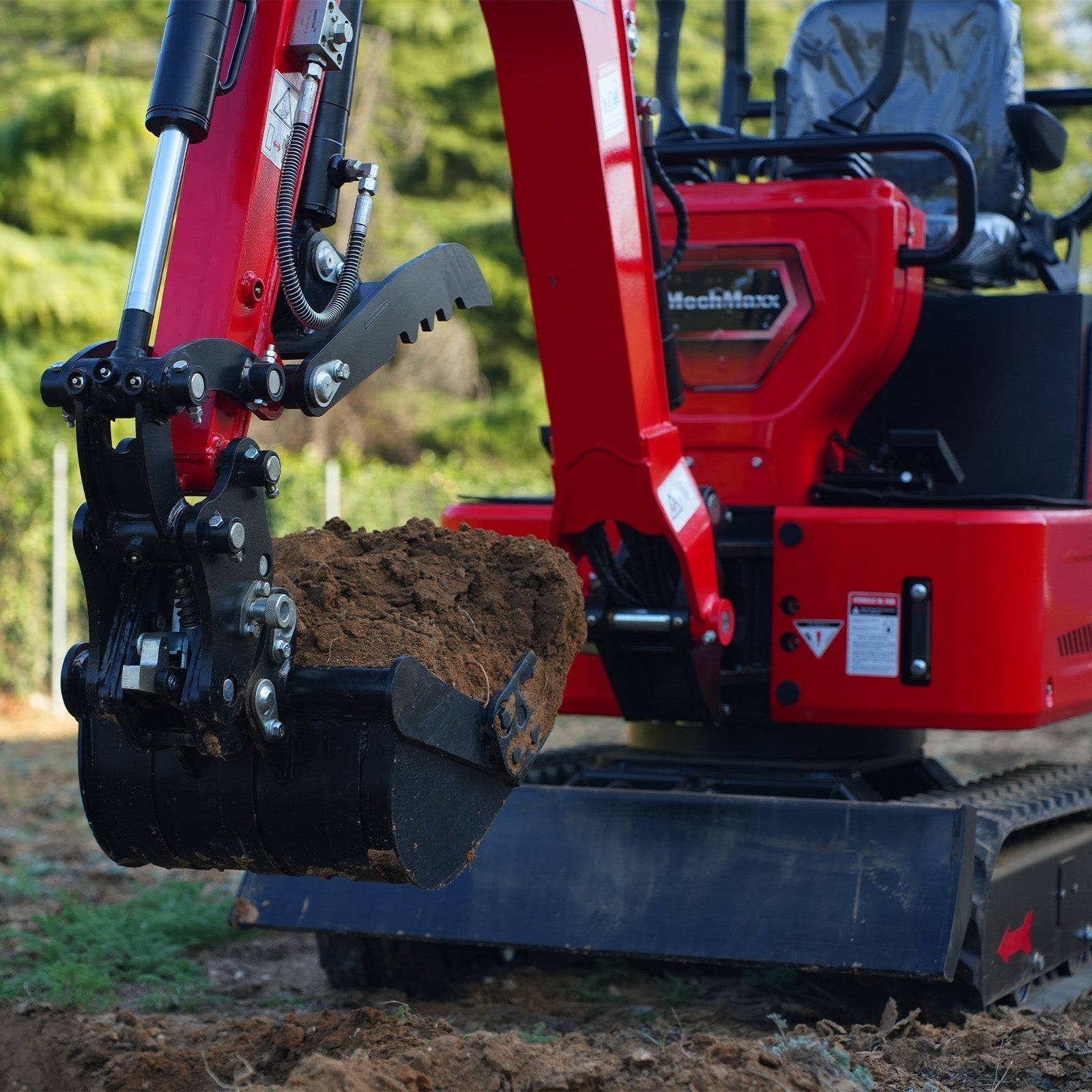

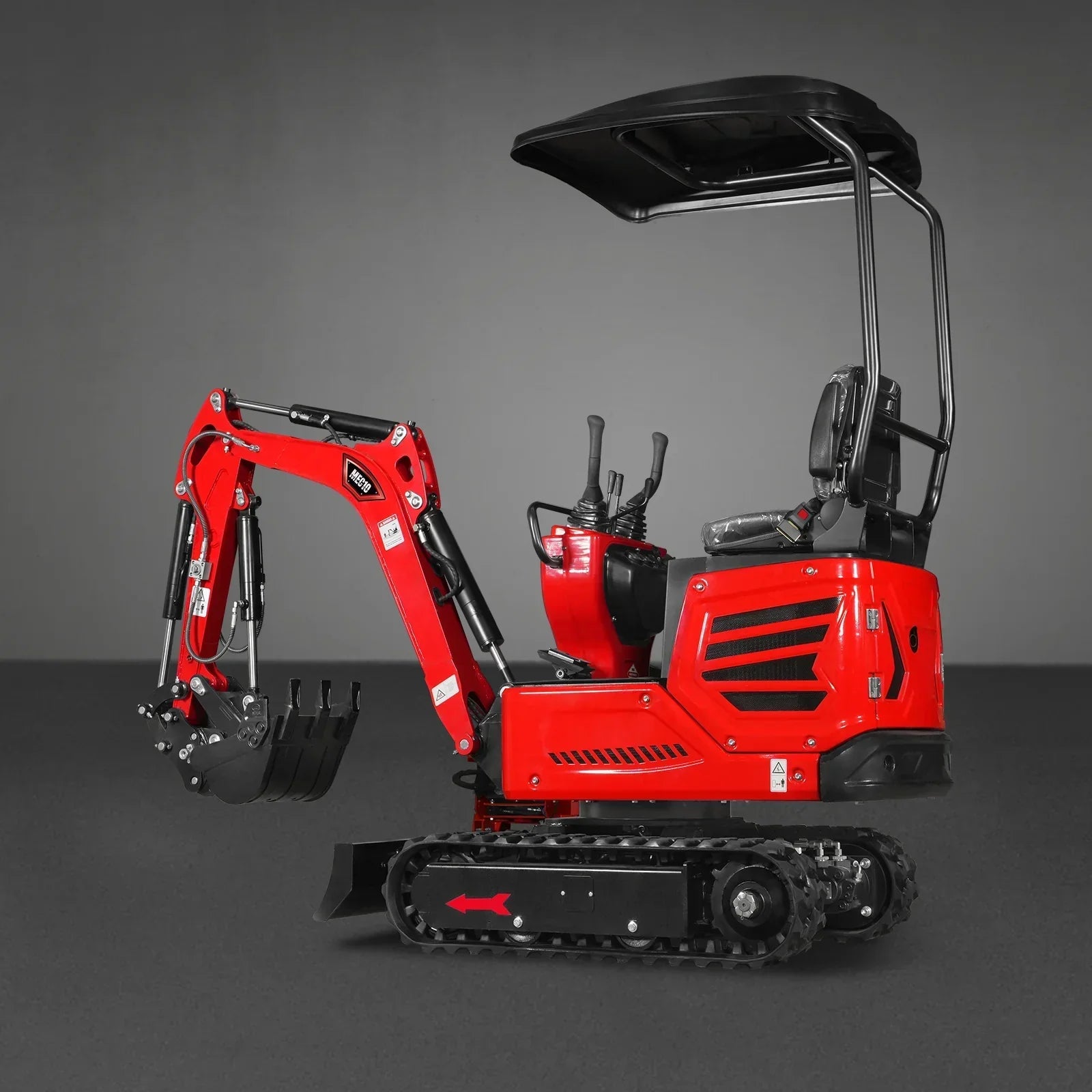

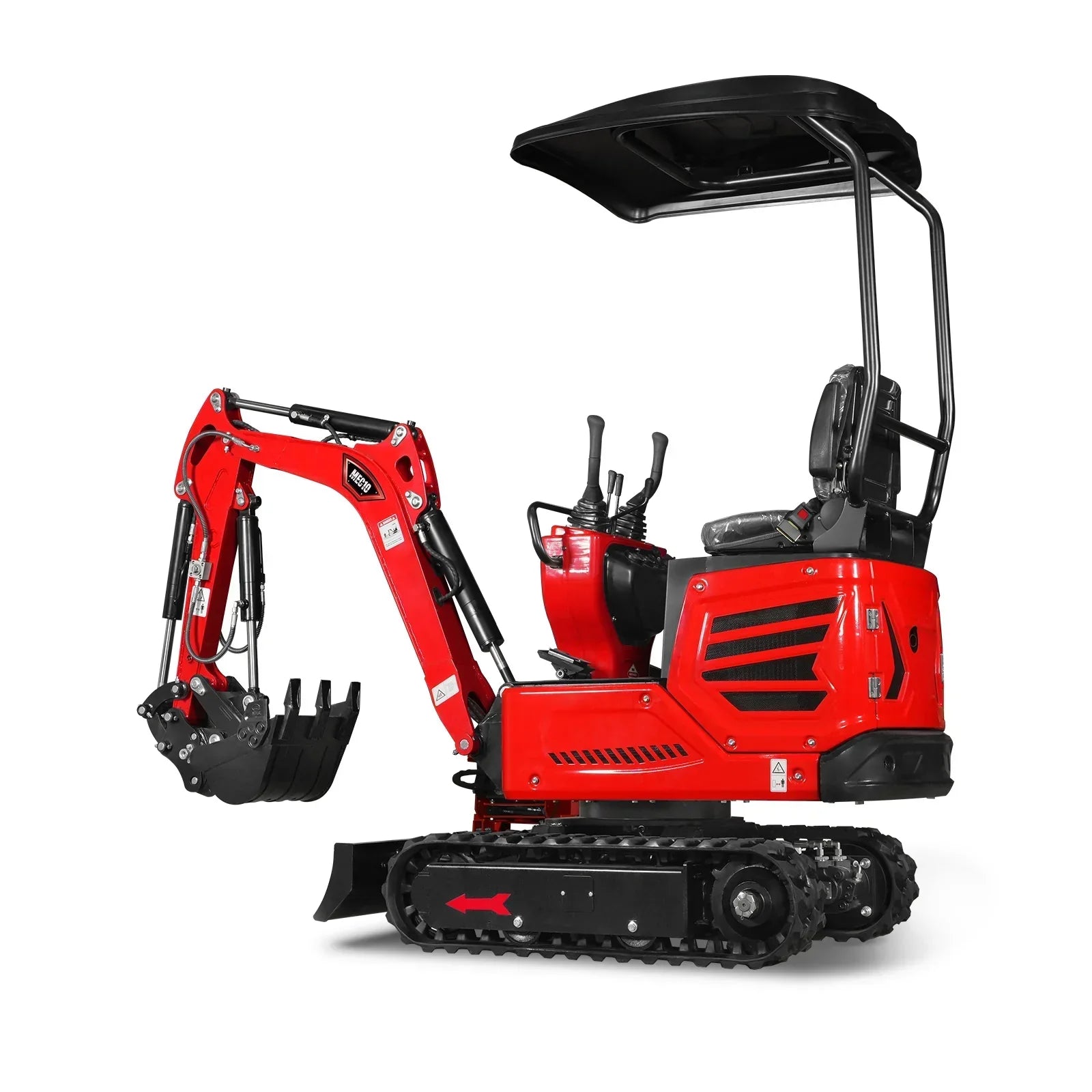

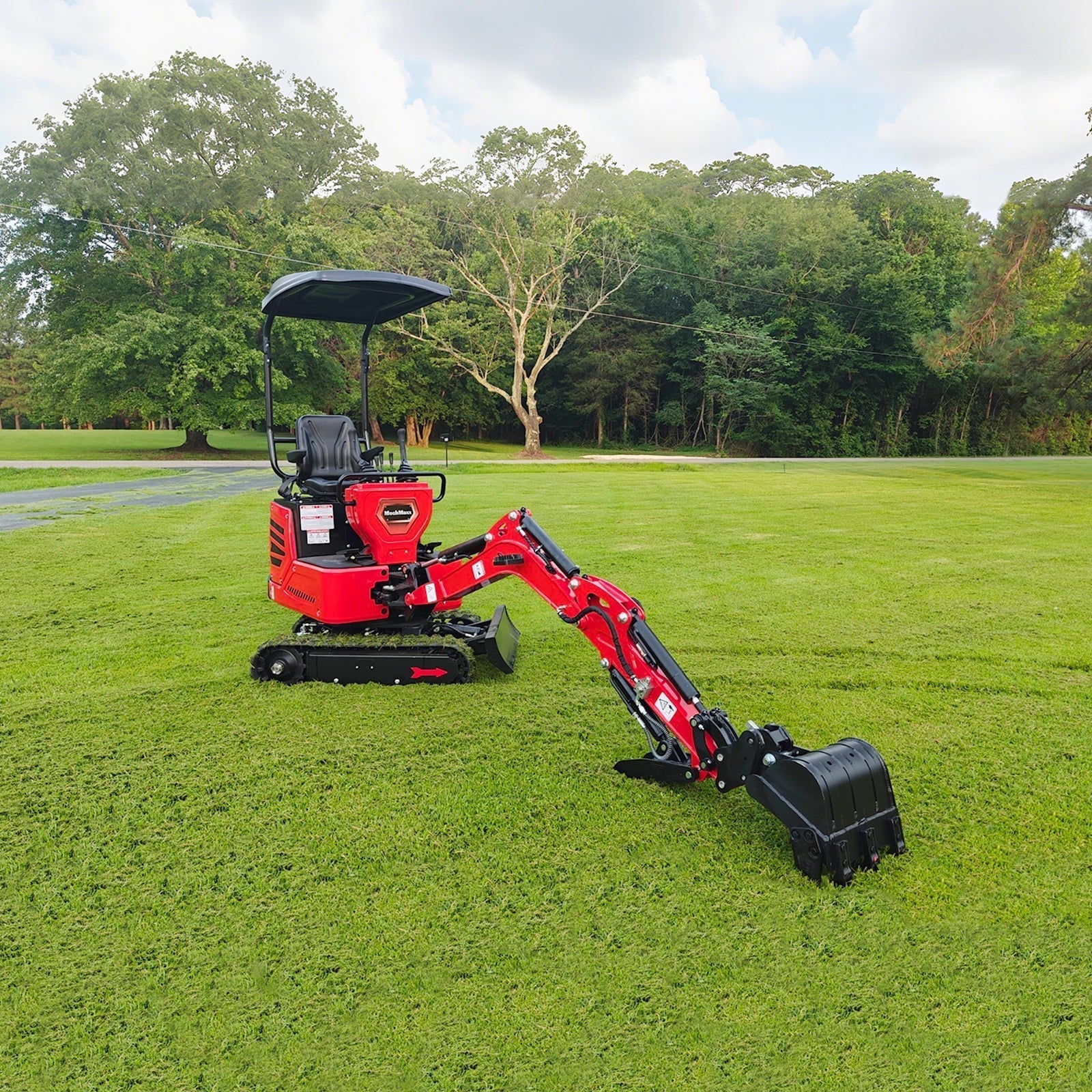

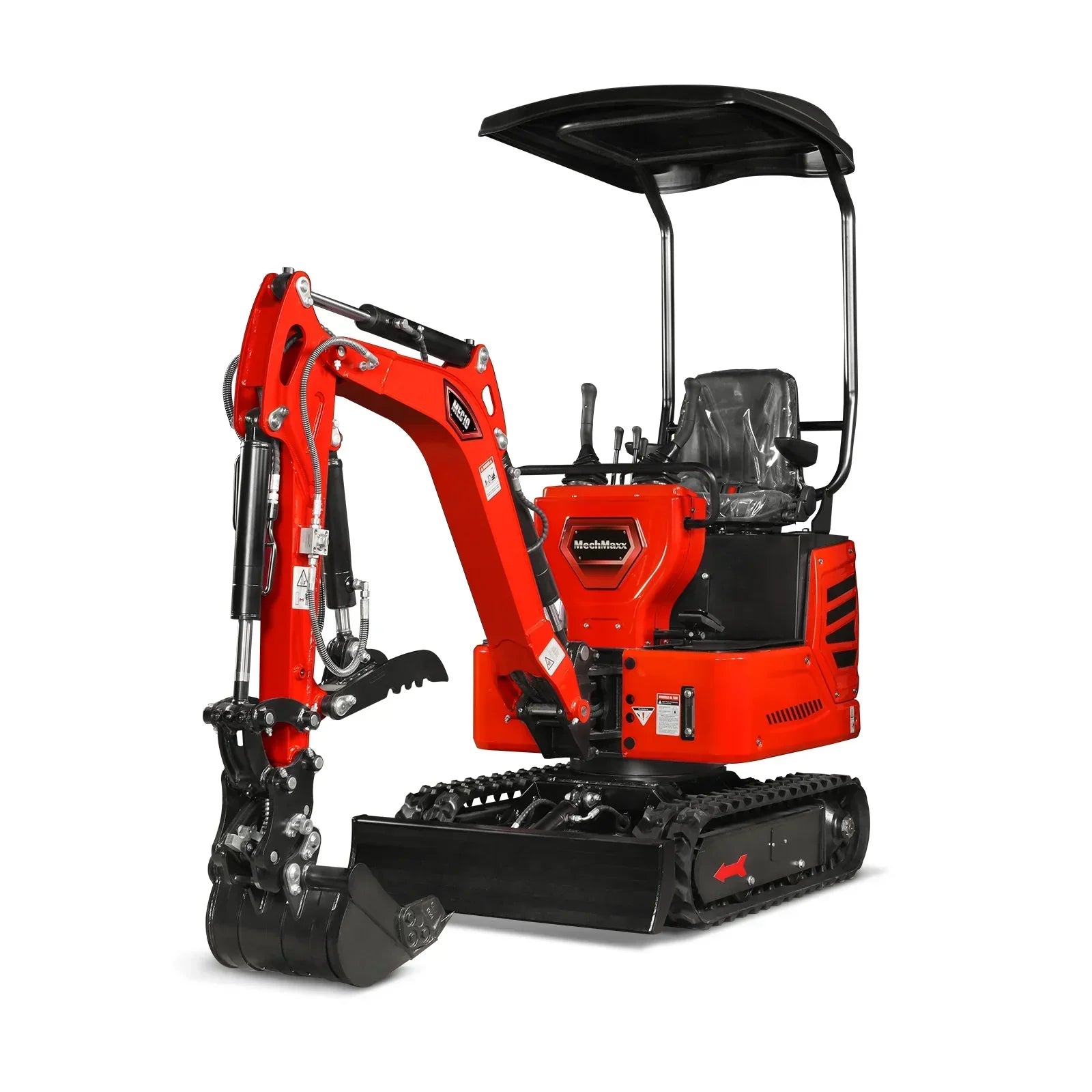

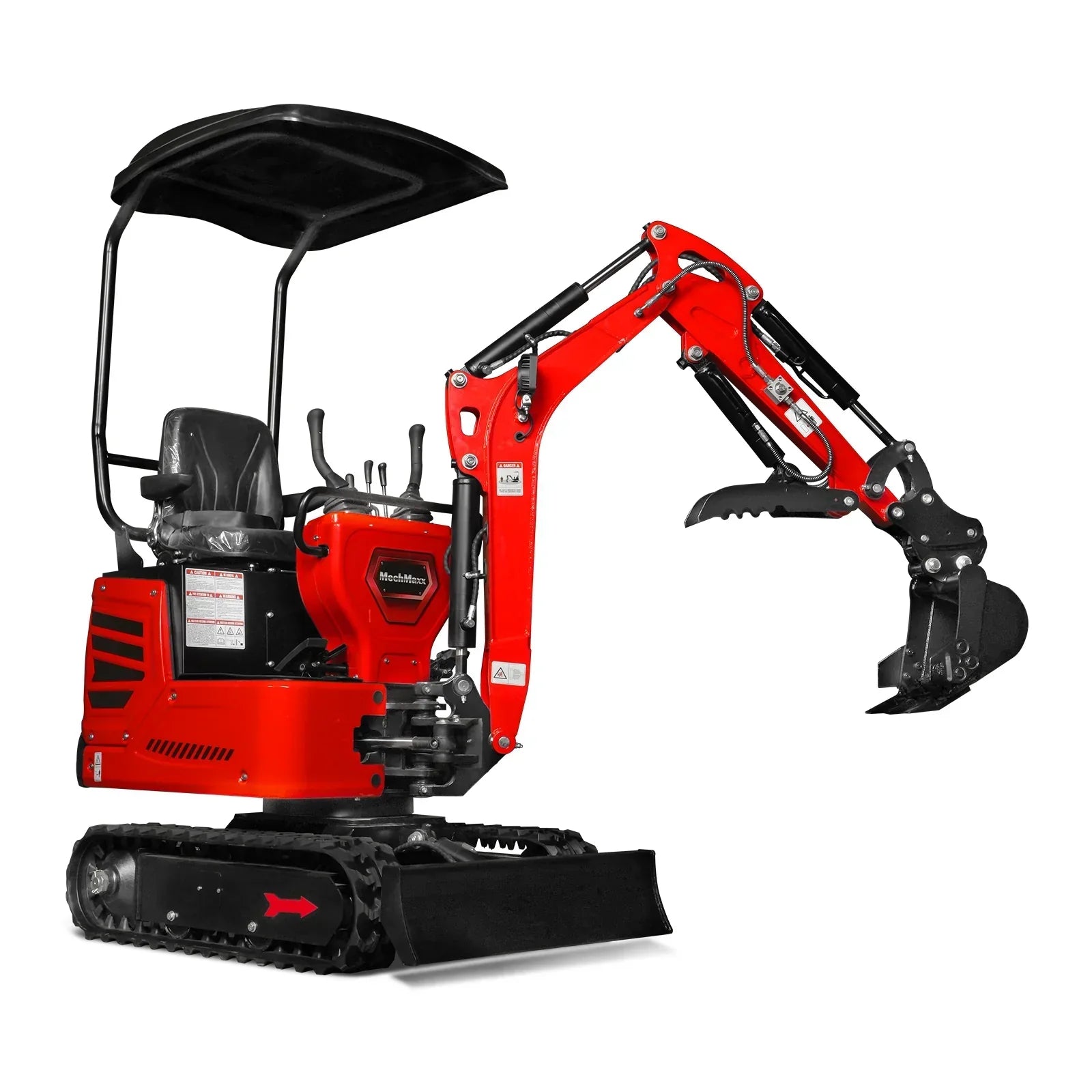

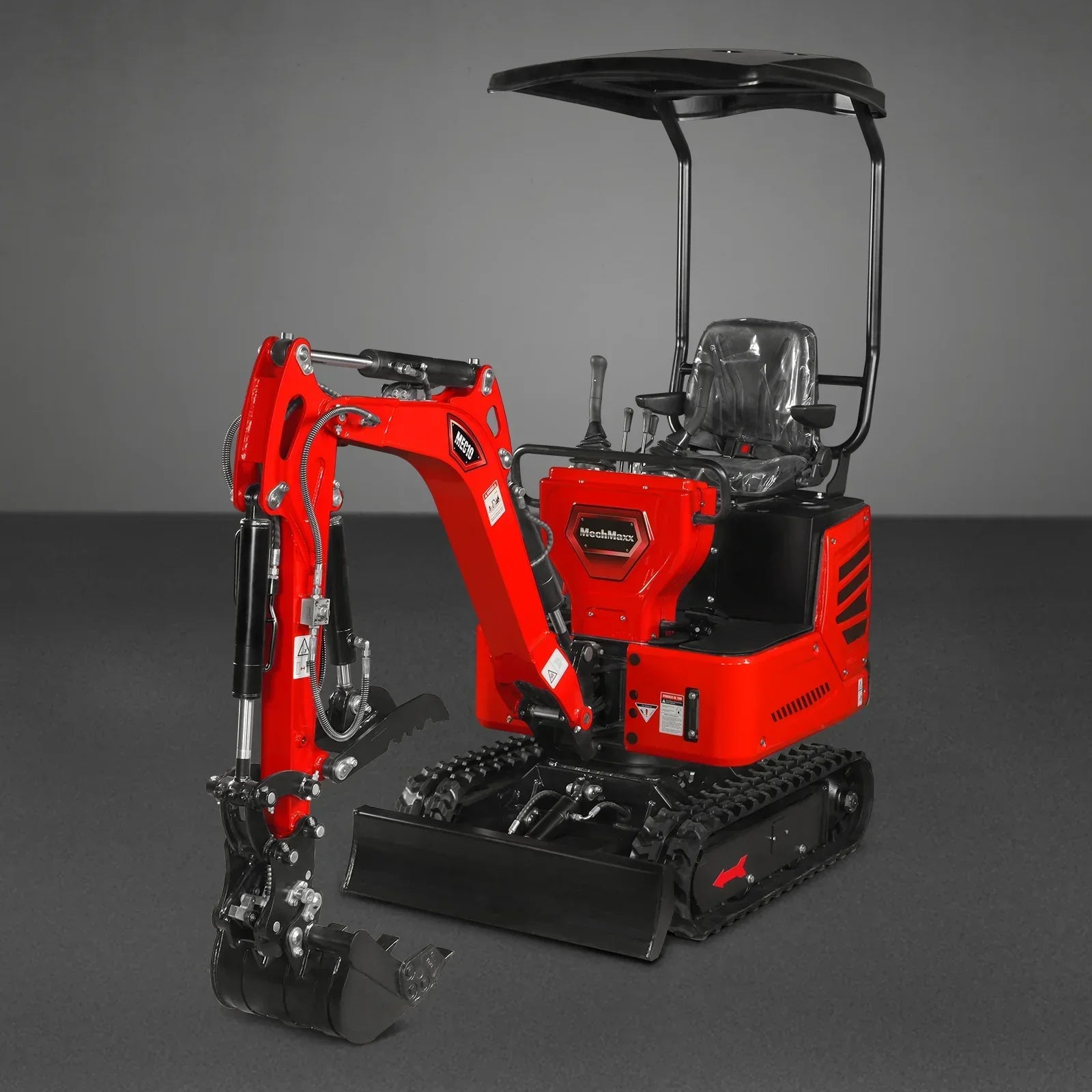

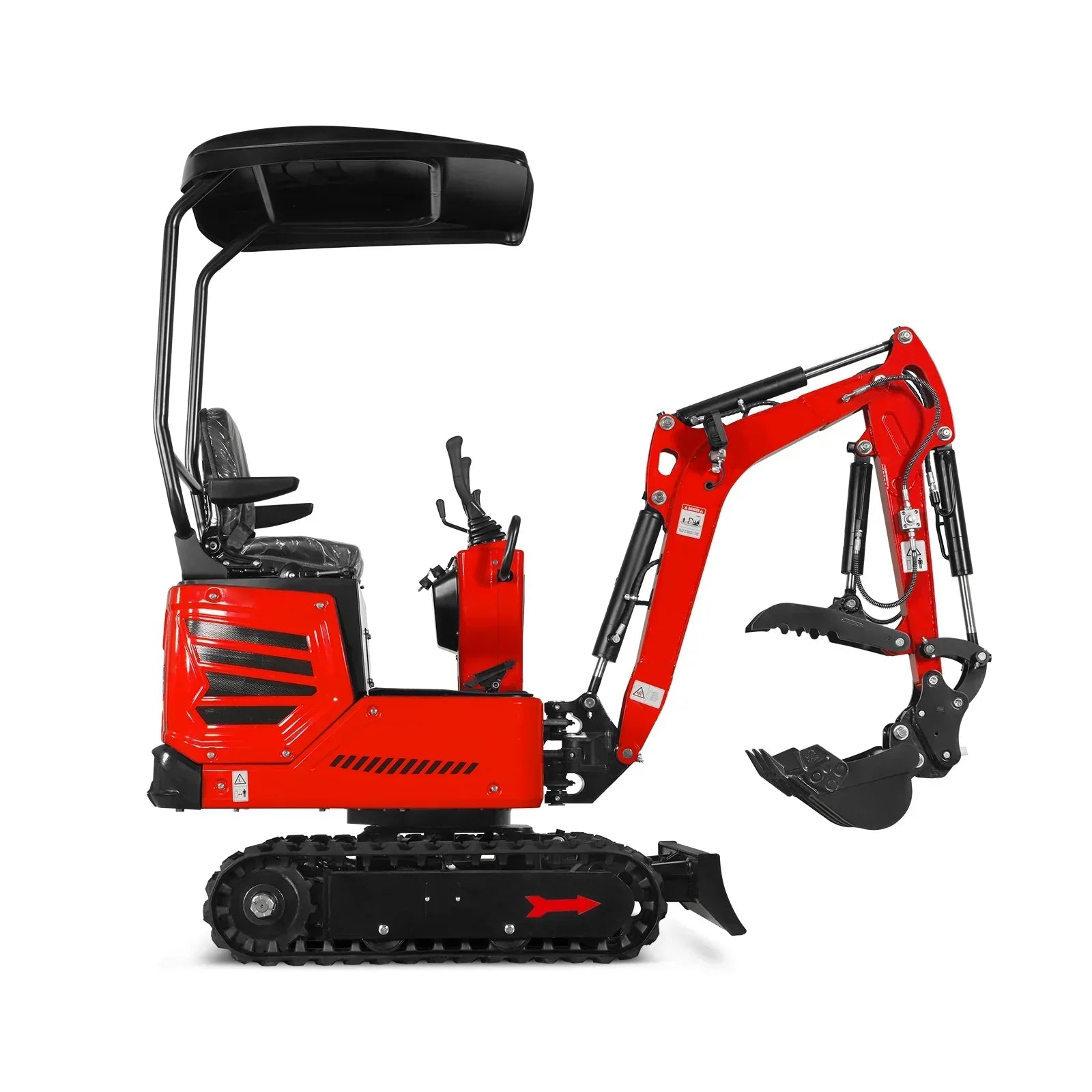

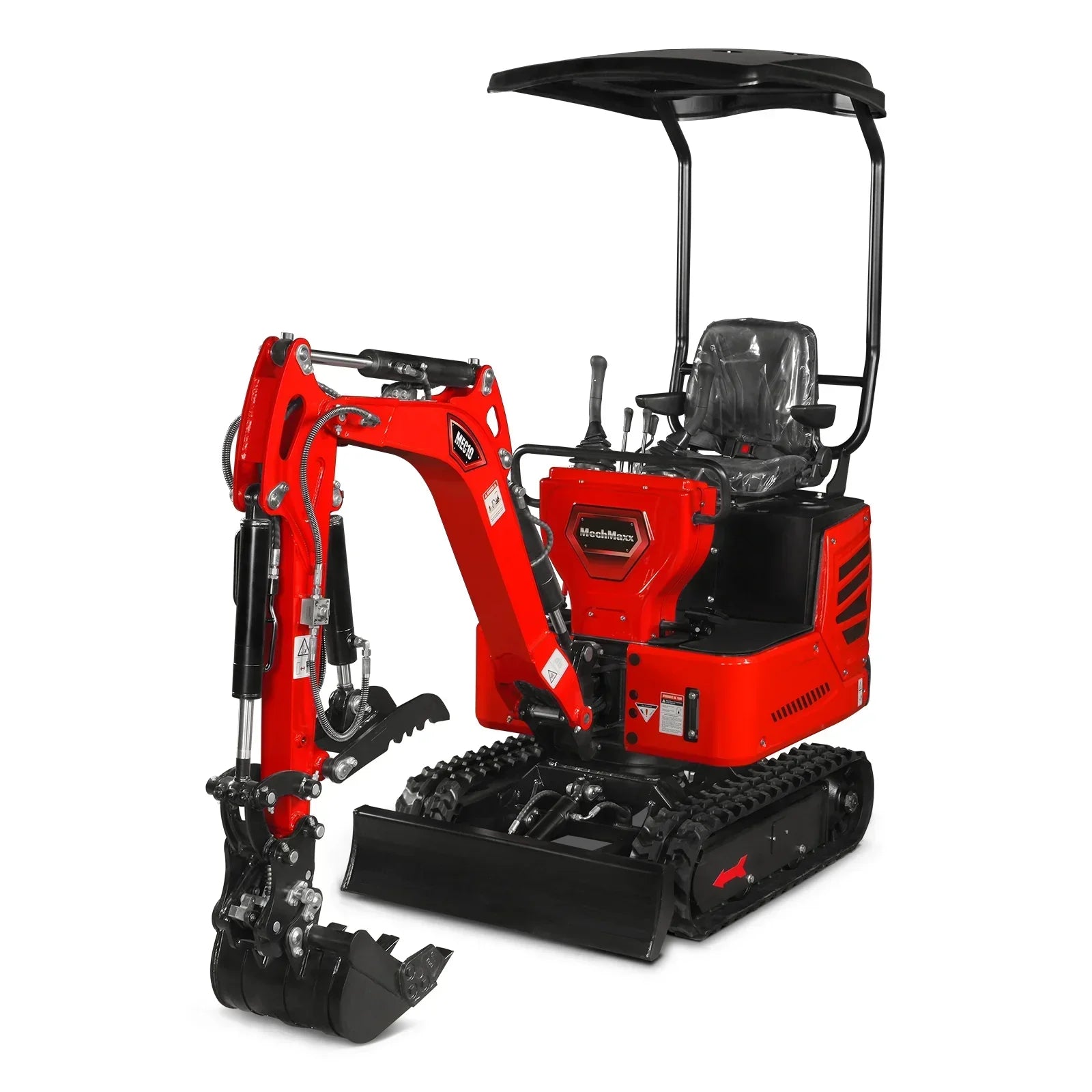

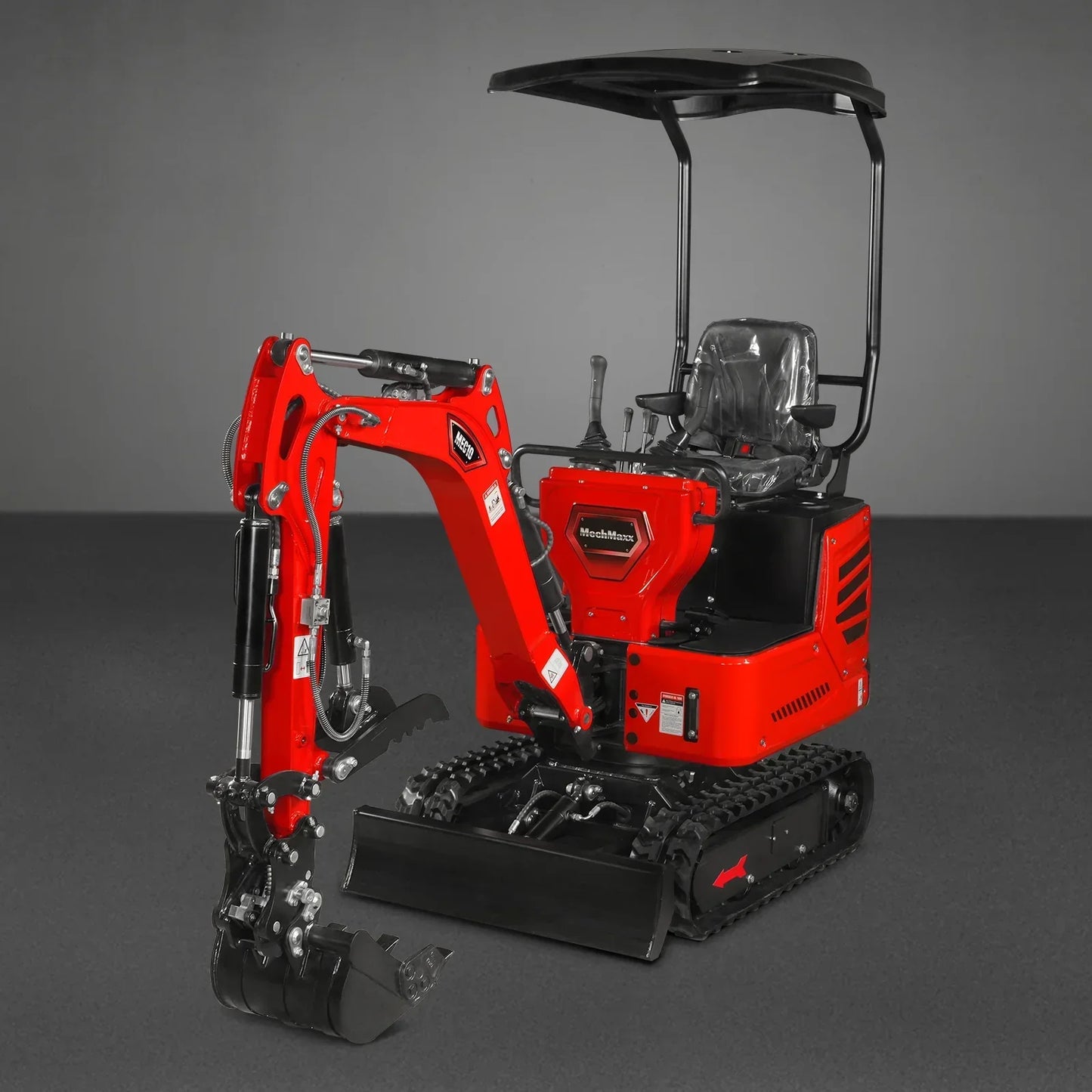

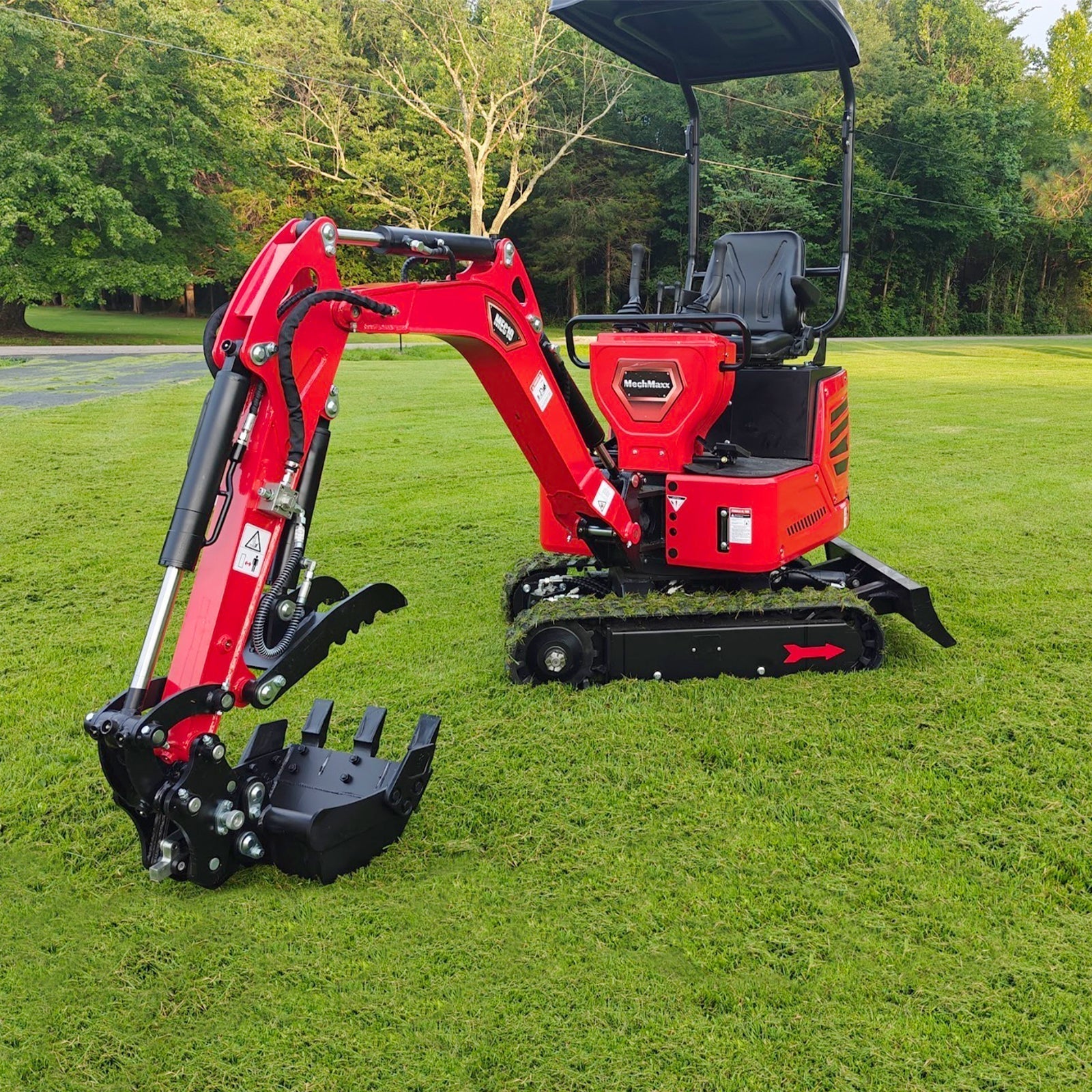

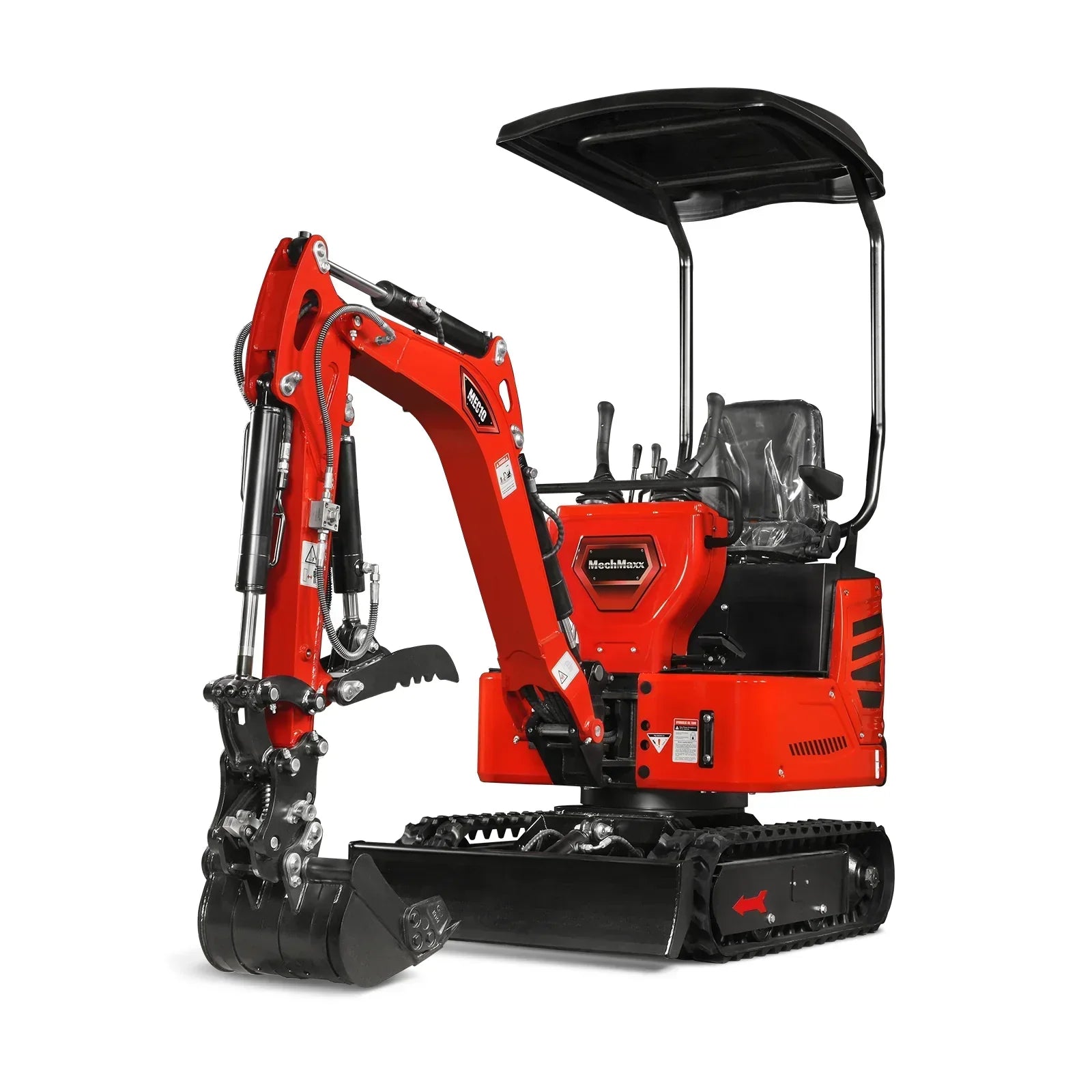

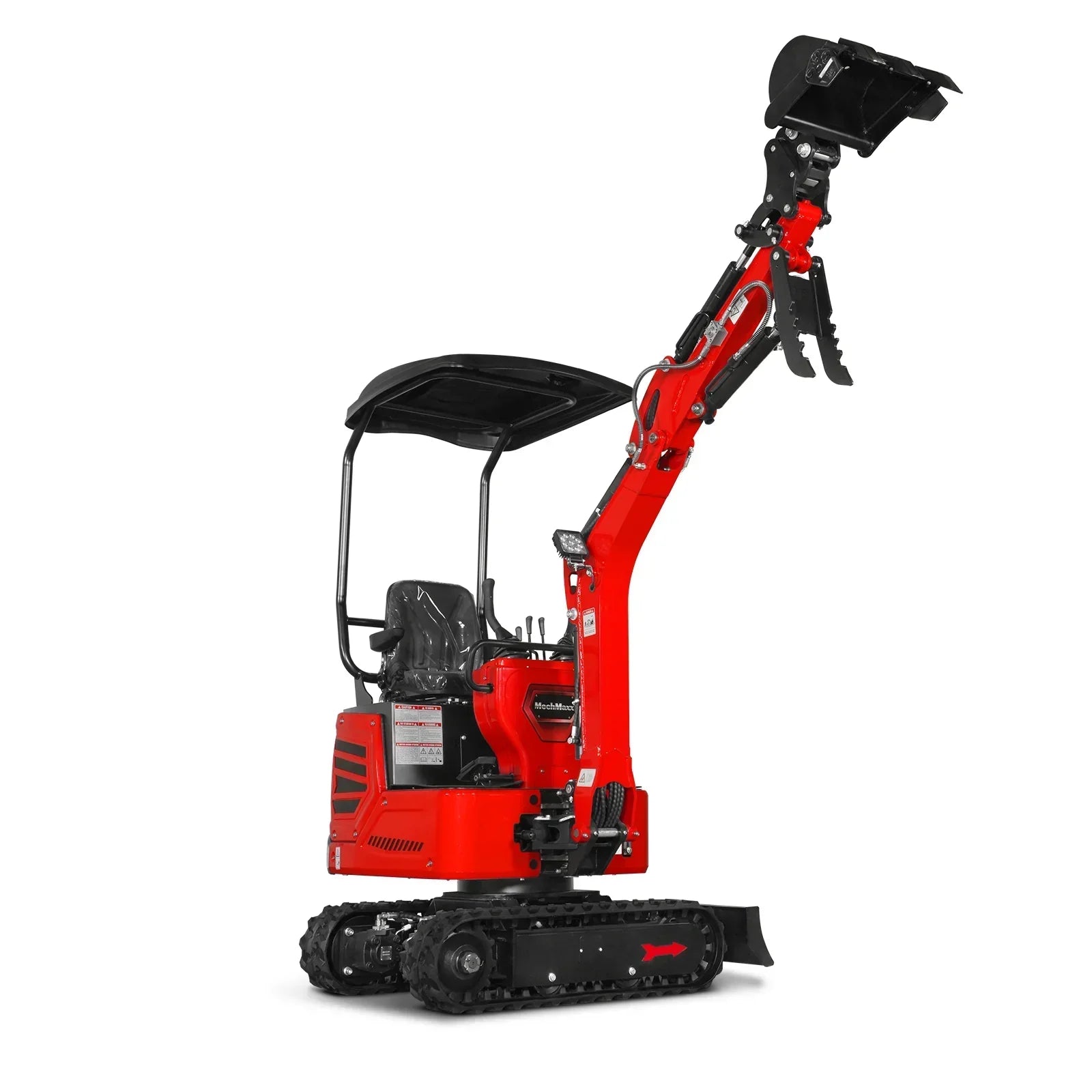

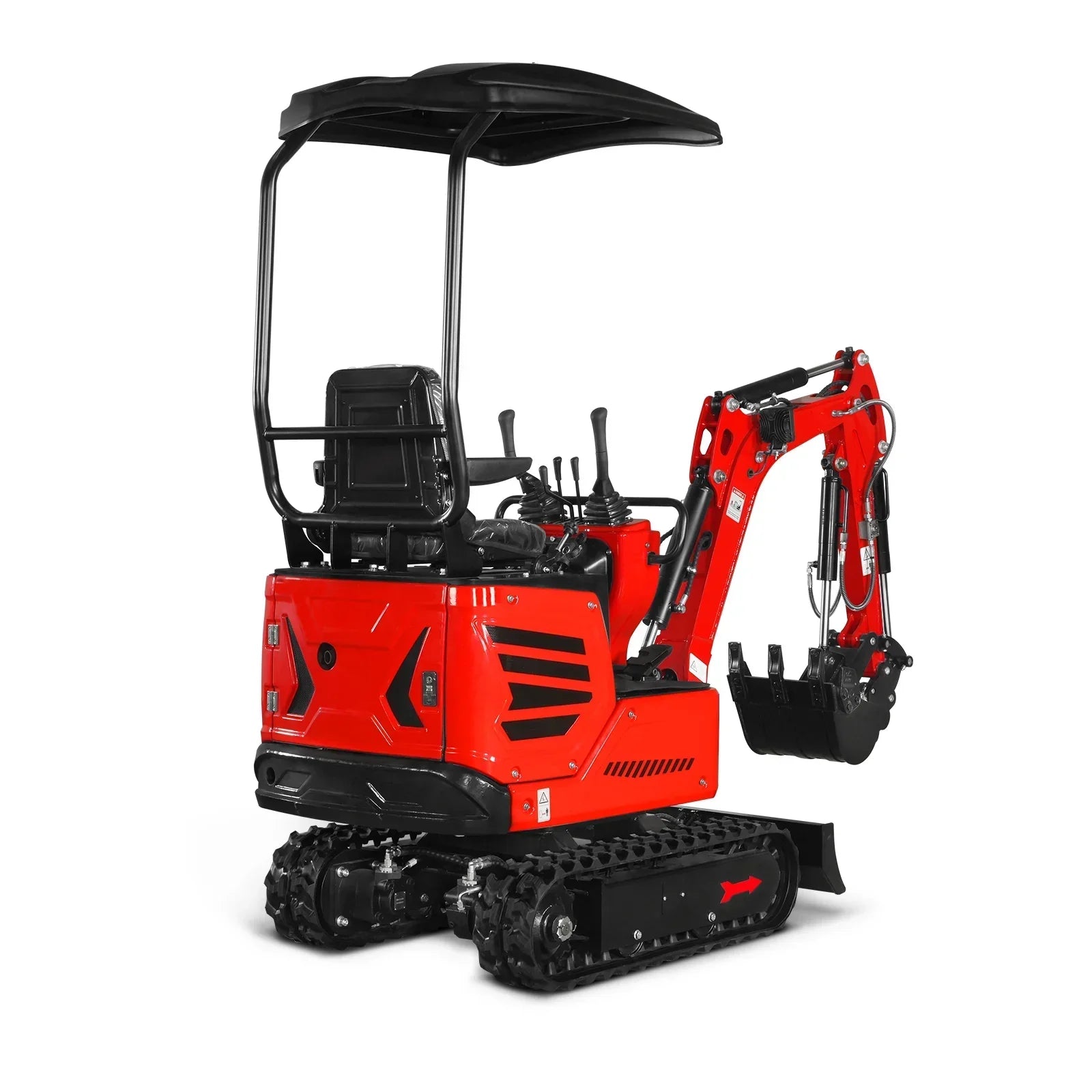

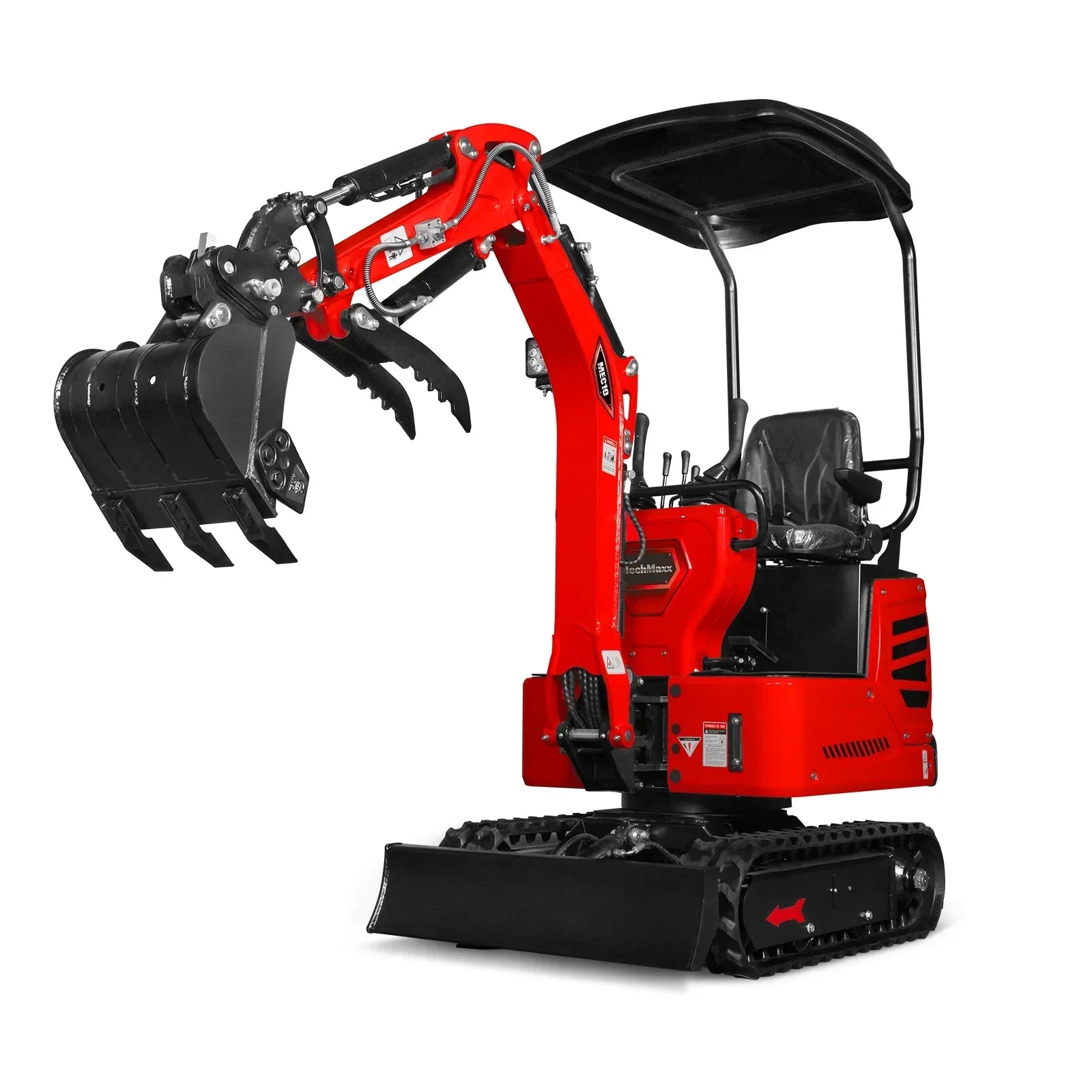

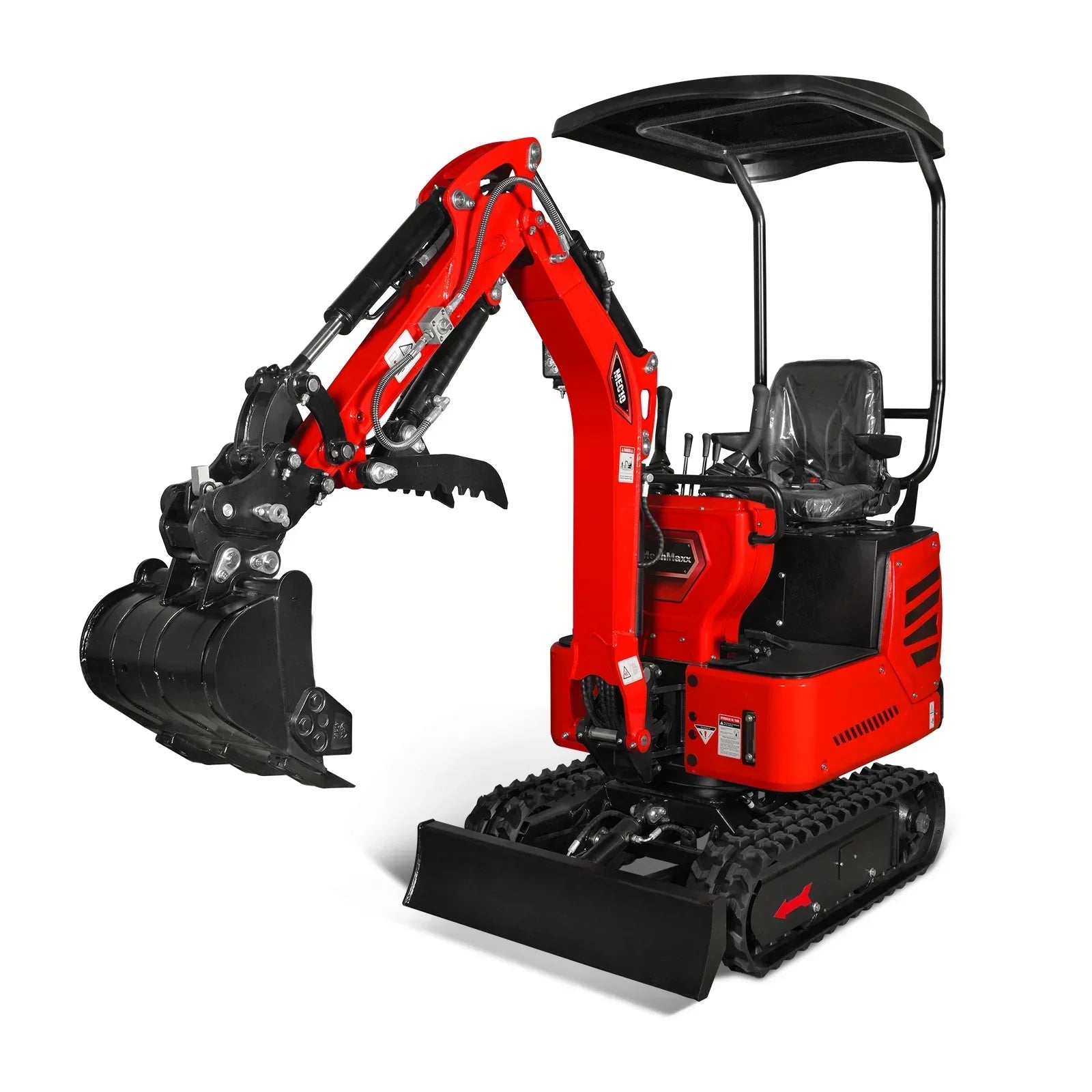

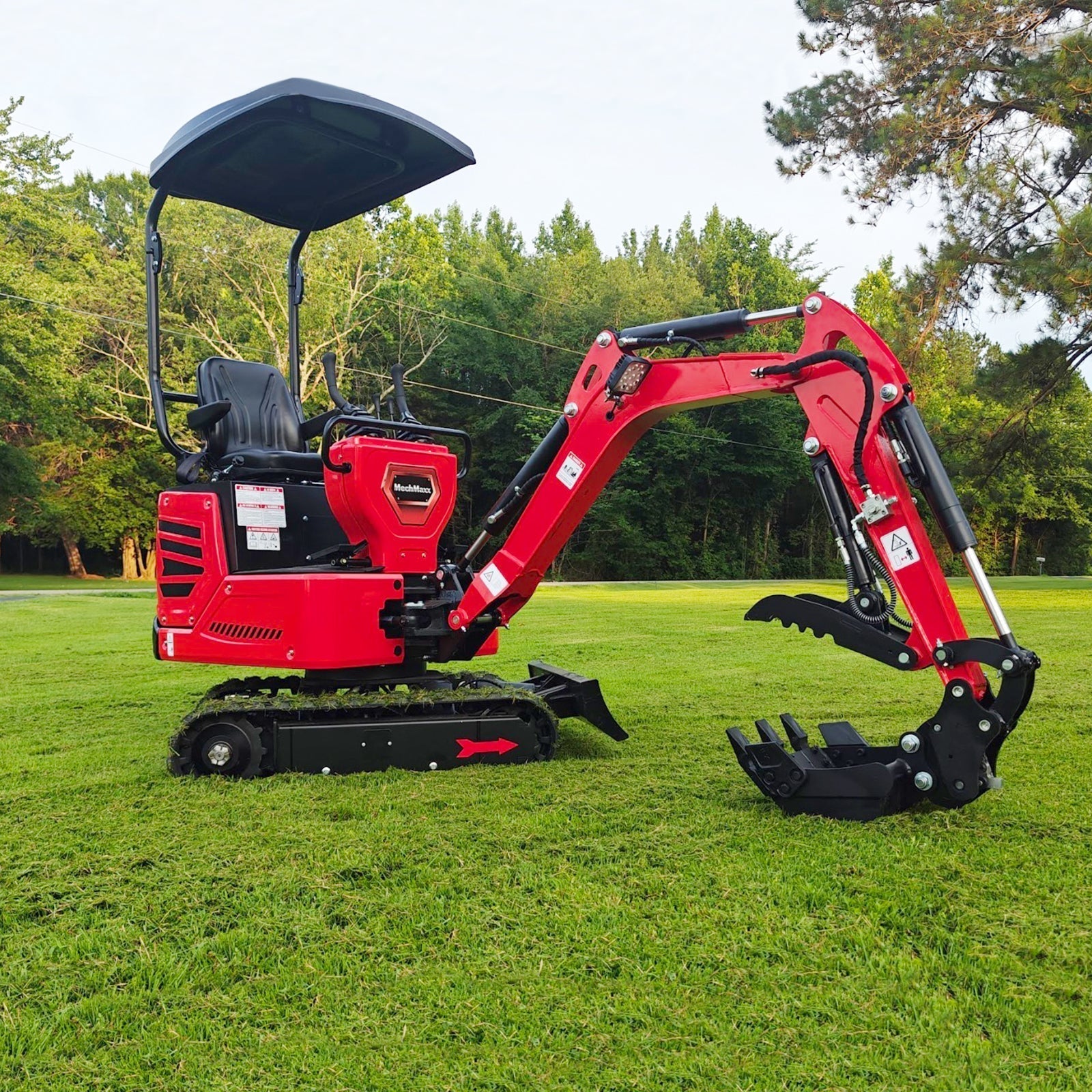

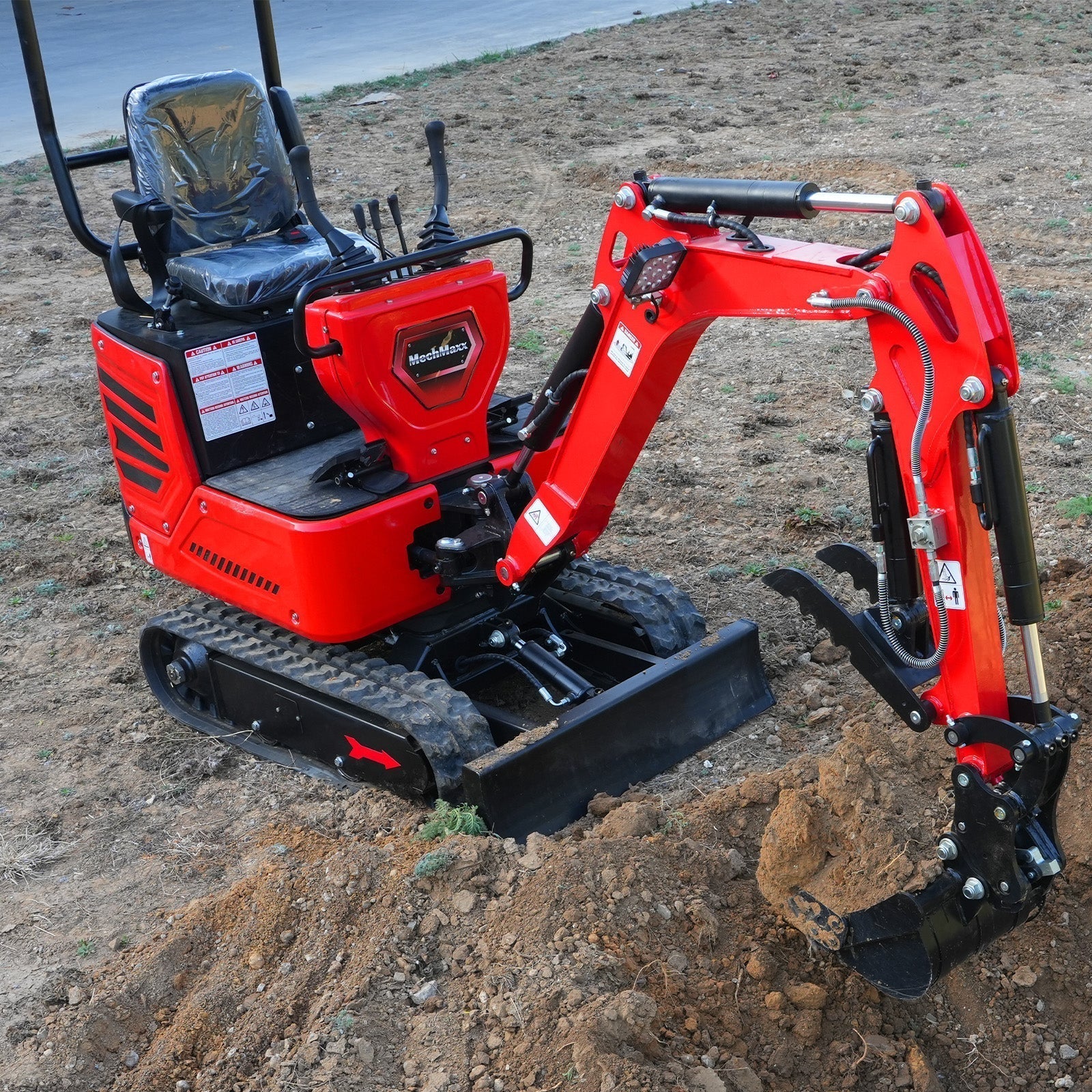

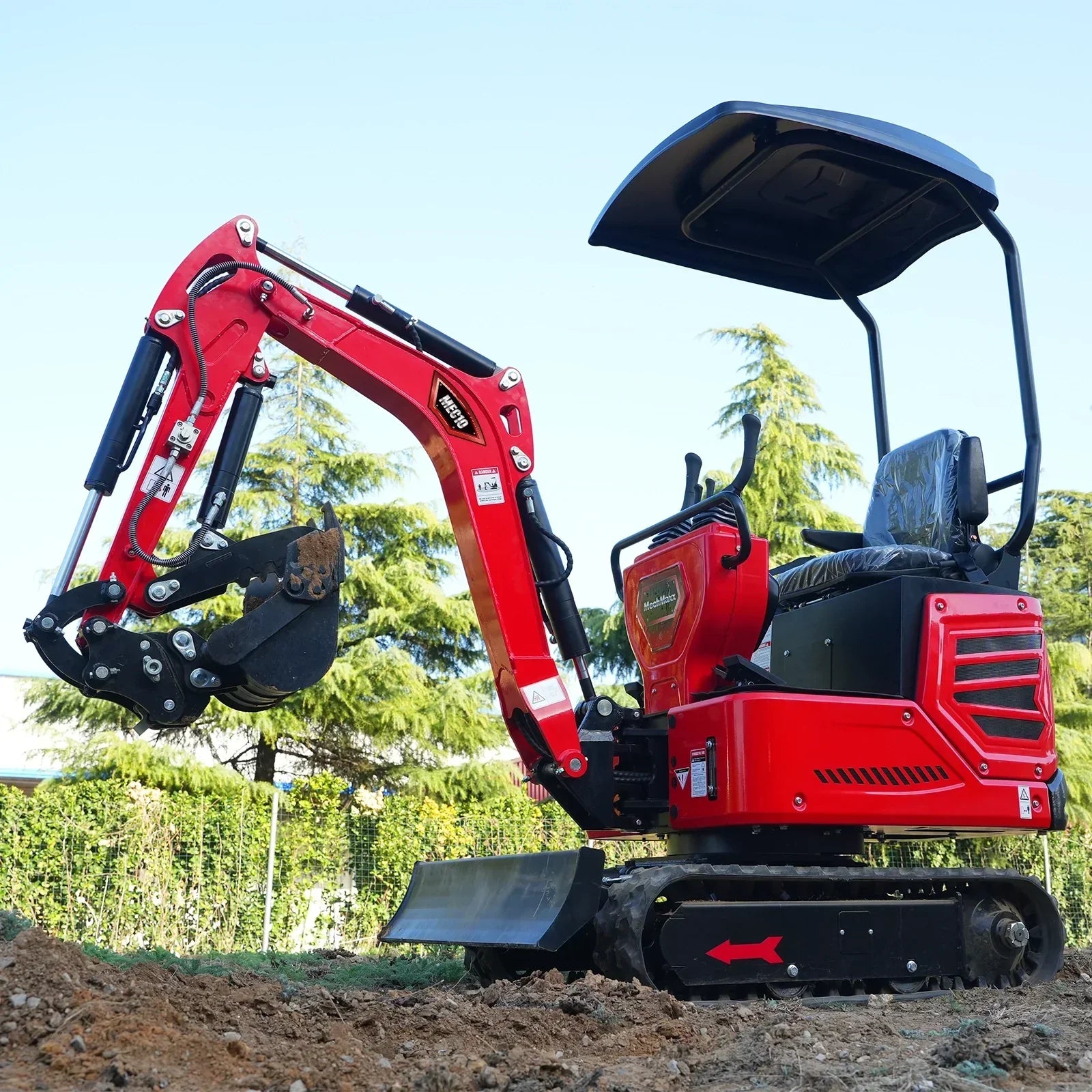

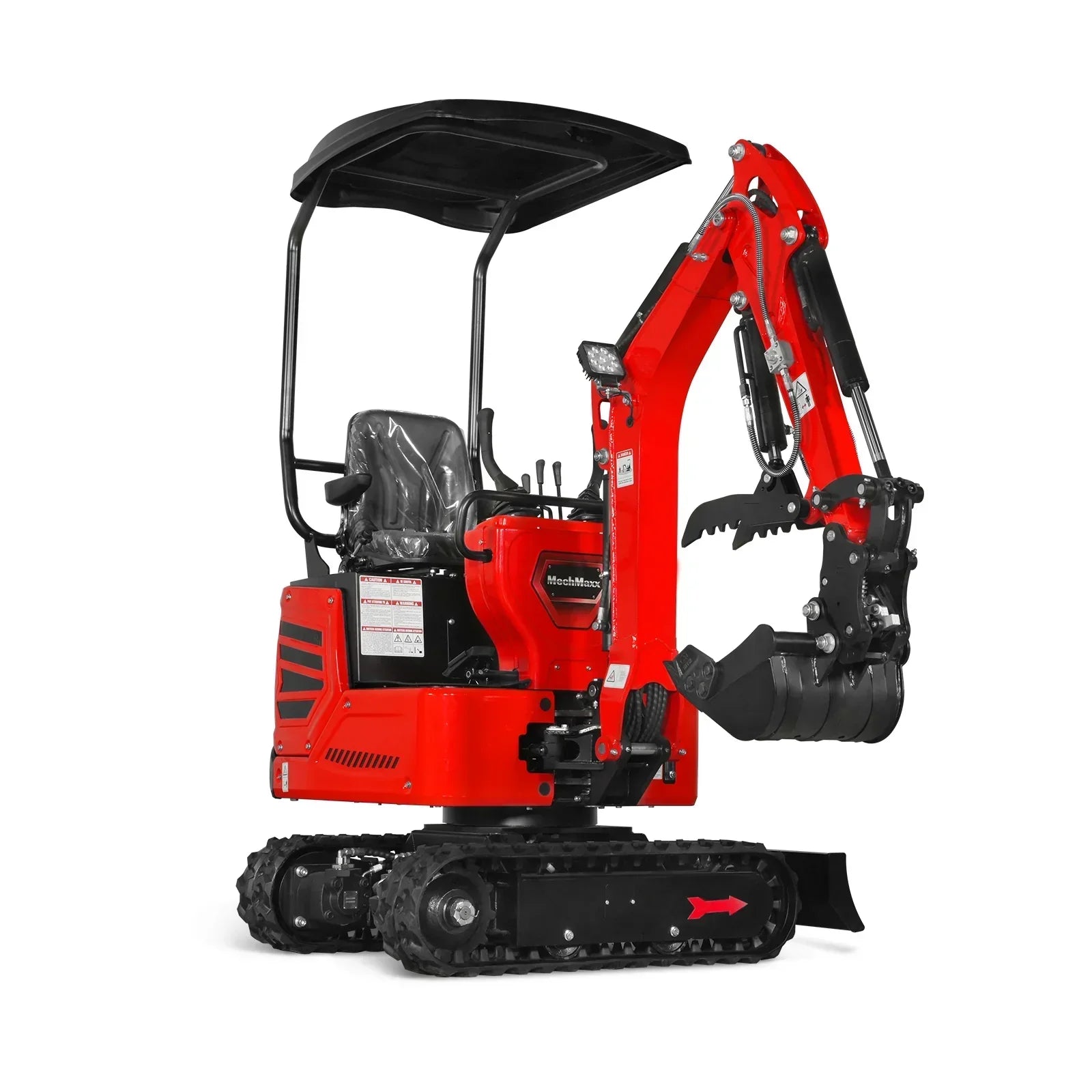

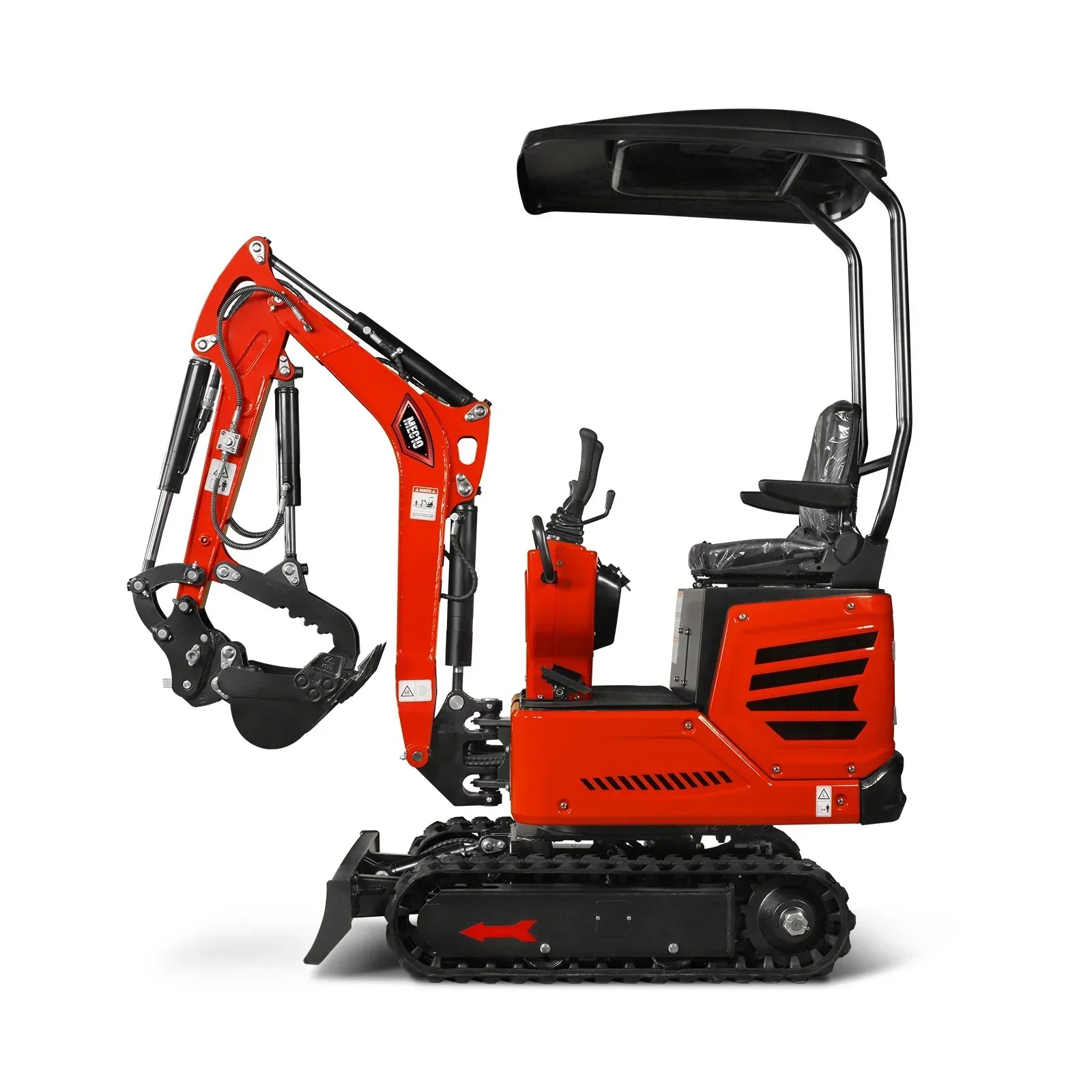

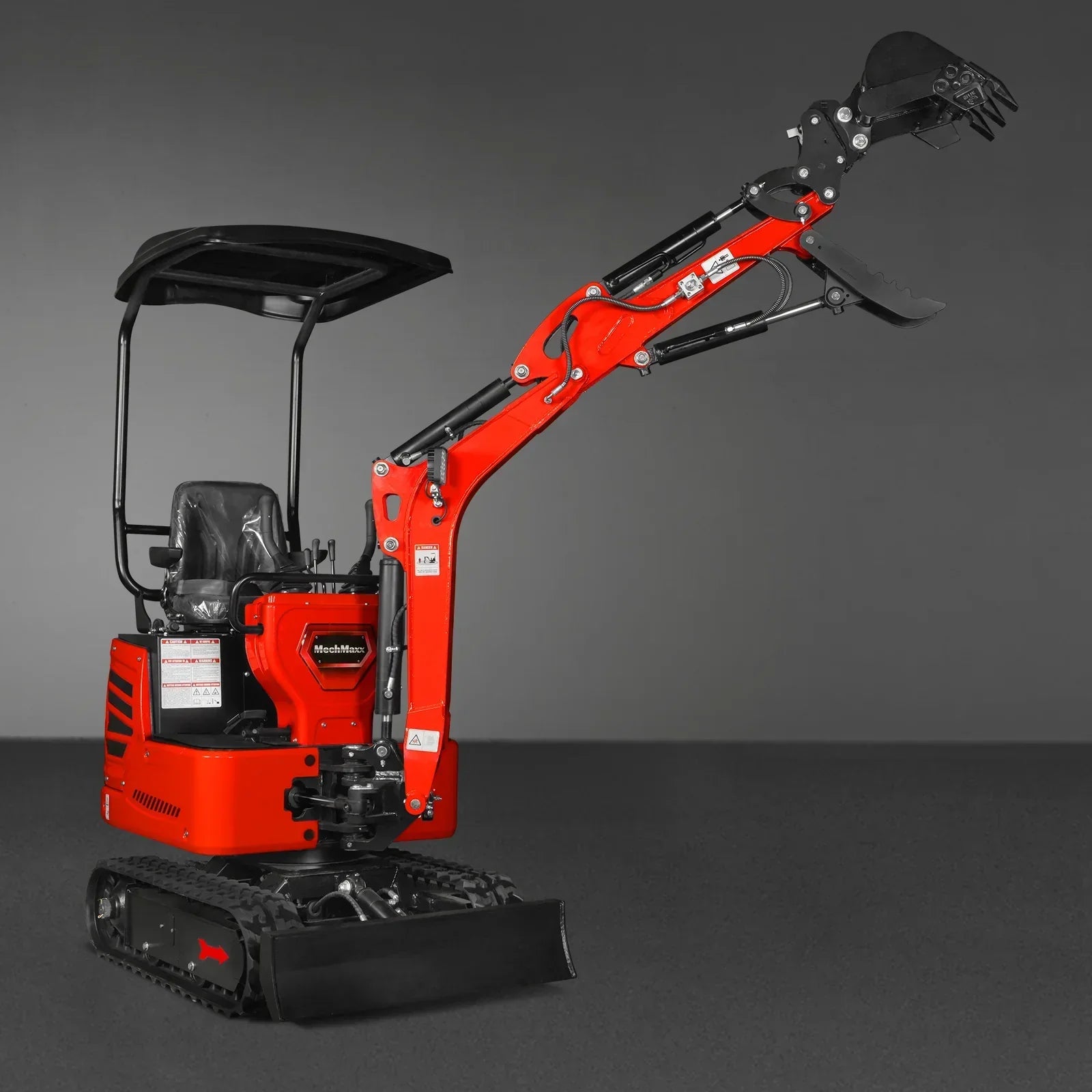

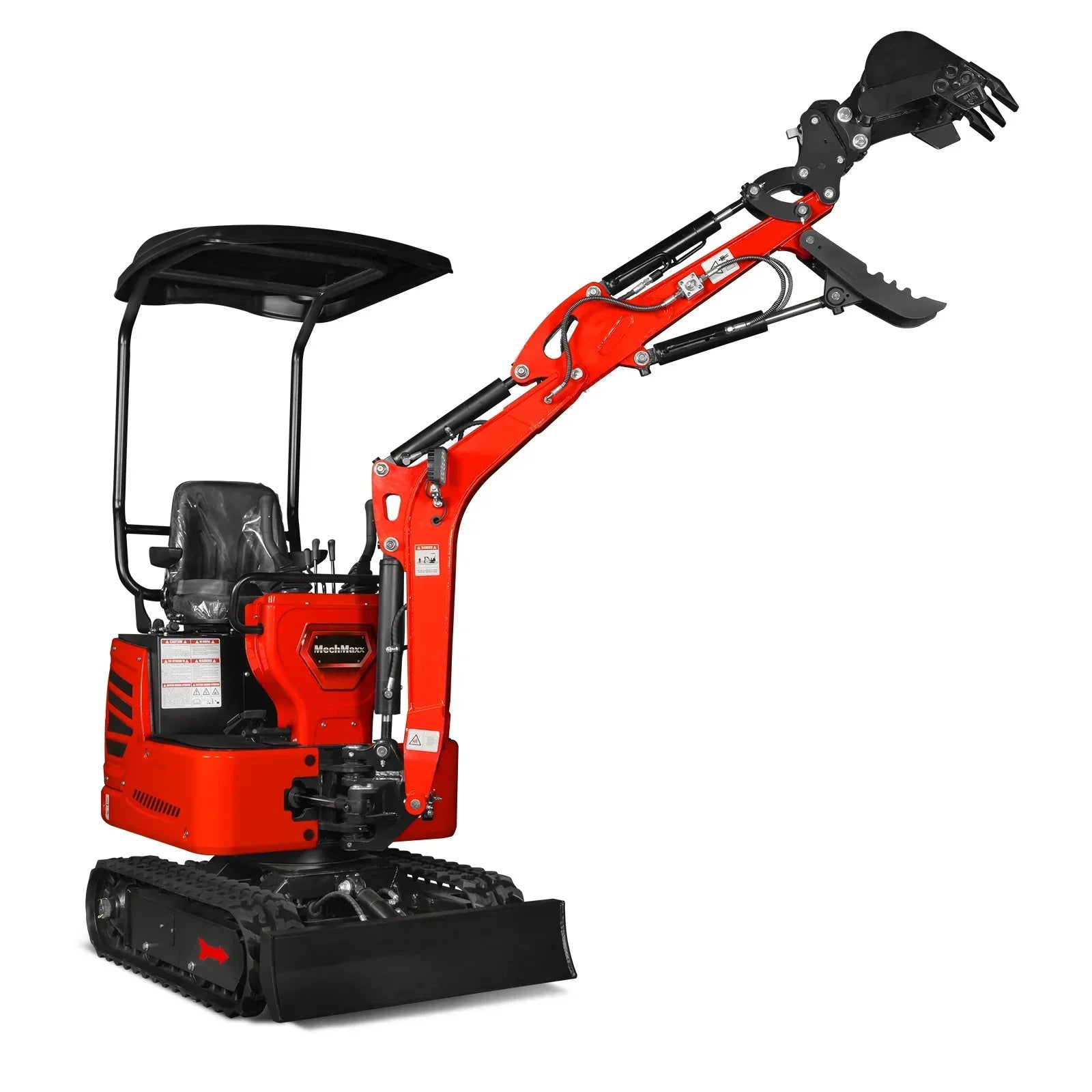

Mini Compact Excavator HONDA GX390 Engine, 65.7” Max. Digging Depth, 2280 LBS Operating Weight, MEC10

Mini Compact Excavator HONDA GX390 Engine, 65.7” Max. Digging Depth, 2280 LBS Operating Weight, MEC10

$3,349.50 USD
$3,349.50 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Free Shipping All US orders
Lifetime Support Always here for you

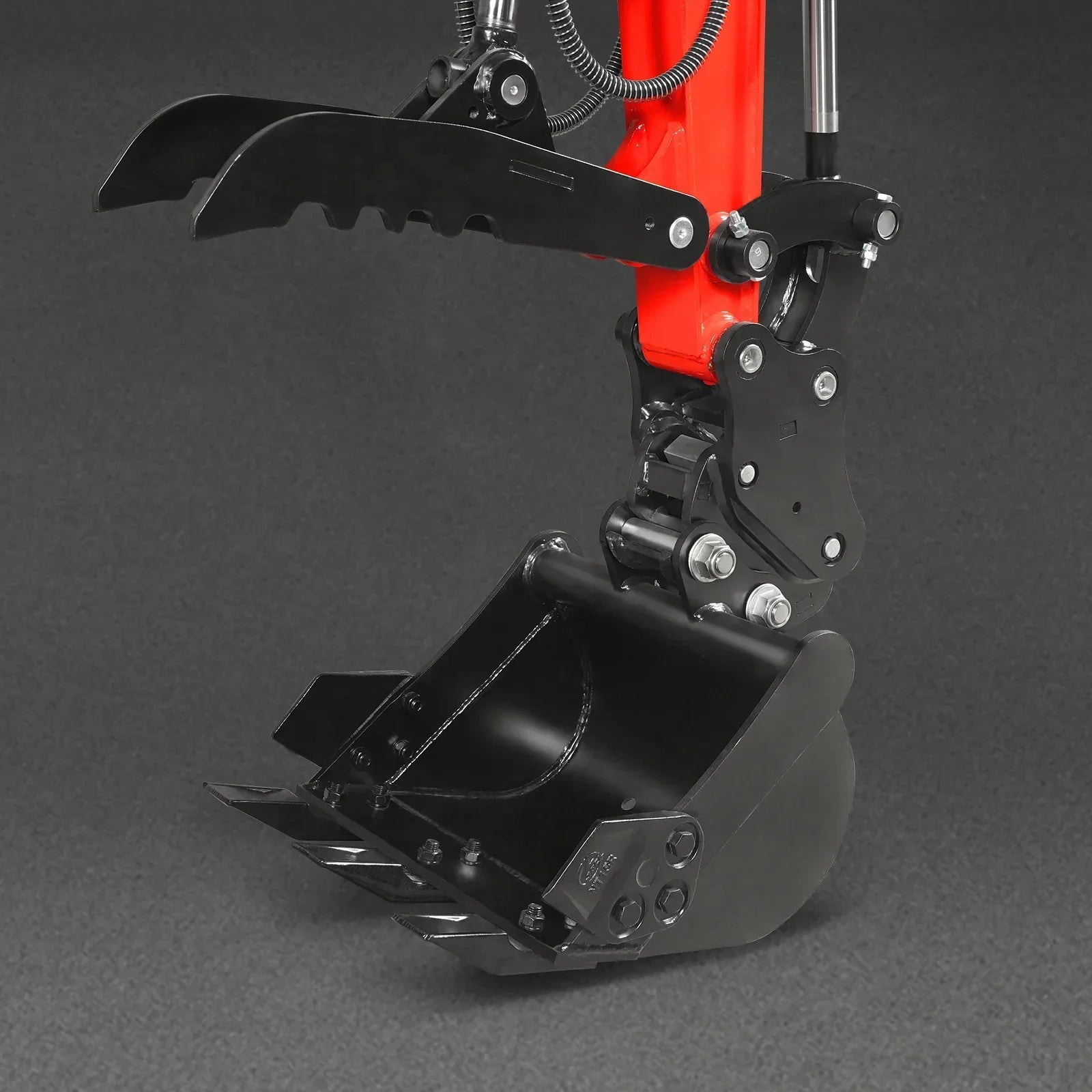

Standard Bucket Capacity 0.7 cu-ft Auxiliary Std Flow 5.7 gal/min
Standard Bucket Width 15 in Max. Tractive Force 3035 lbf
Max. Travel Speed 0.75 mile/h Arm Digging Force  1191 lbf
Slewing Speed 11 rpm Bucket Digging Force  1619 lbf
Max. Gradeability 30° Rated Lift Capacity 728 lb
Track Ground Pressure 5.1 psi Lift Radius 80 in

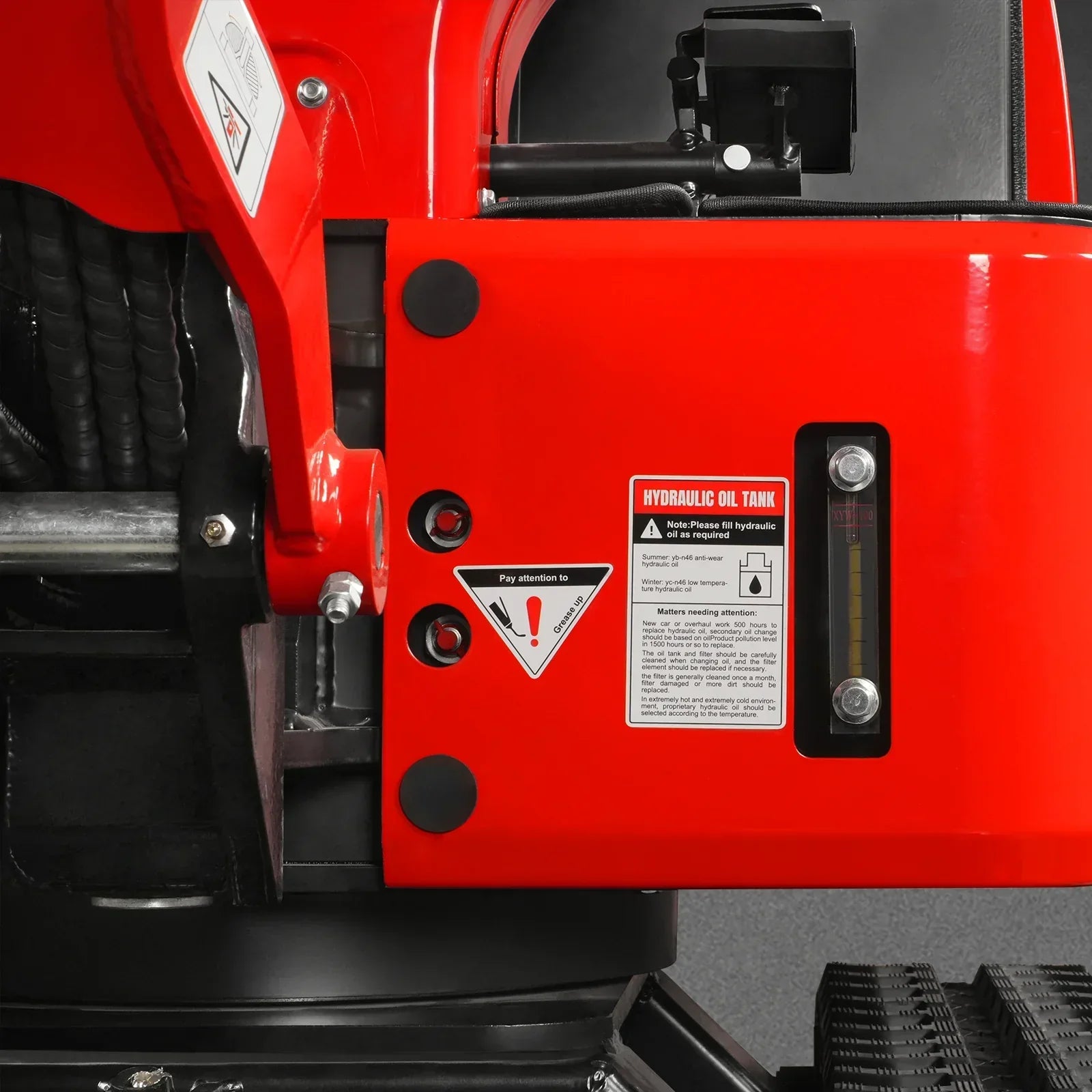

Hydraulic Oil Tank Capacity 3.96 gal Operating Weight 2280 lb

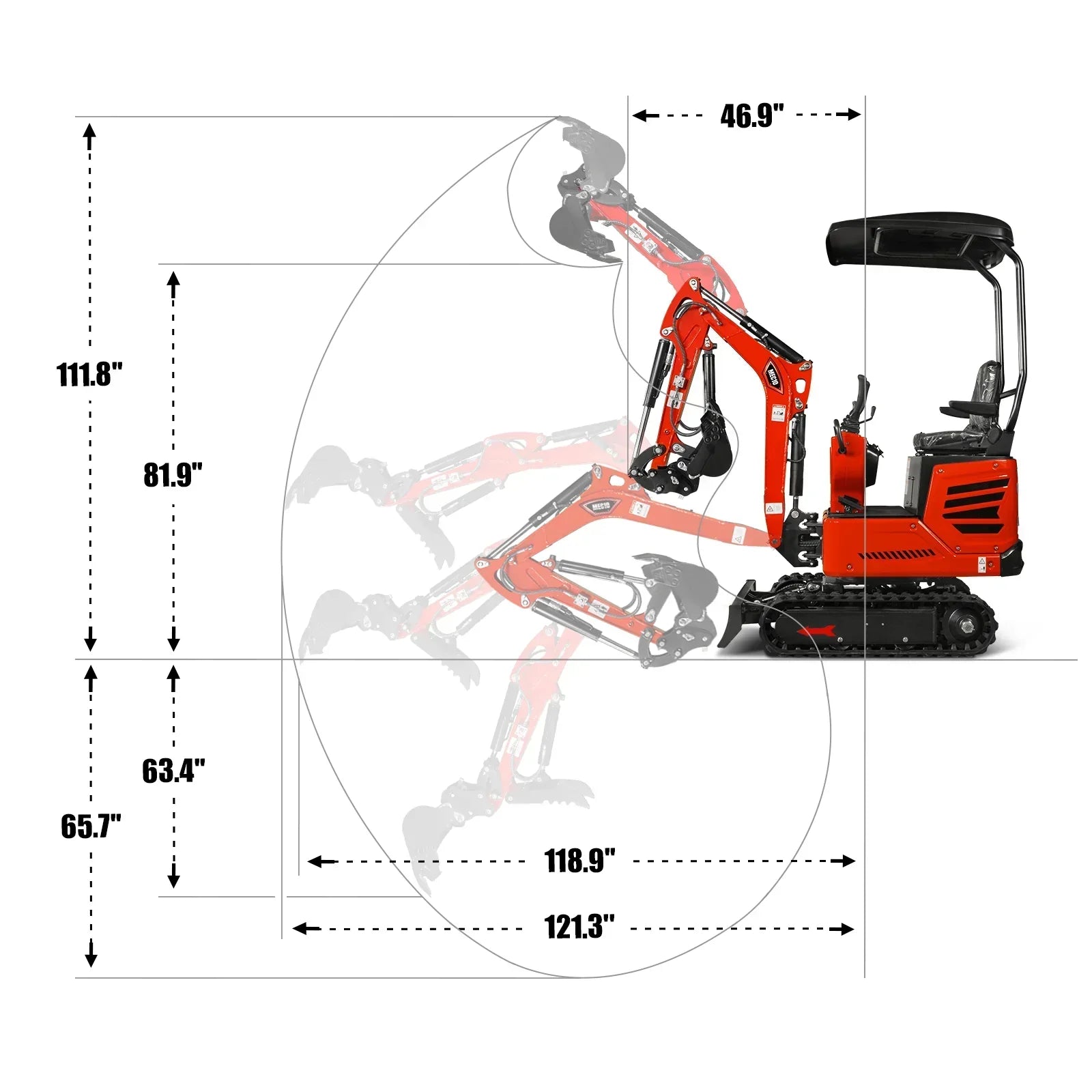

Operating Range
Max.Digging Radius On Ground  119 in Max. Vertical Digging Depth 63.3 in
Max. Digging Depth 65.7 in Min. Turning Radius 46.8 in
Overall Operating Height (Fully Raised) 111.8 in Max. Lifting Height Dozer Blade 5.9 in

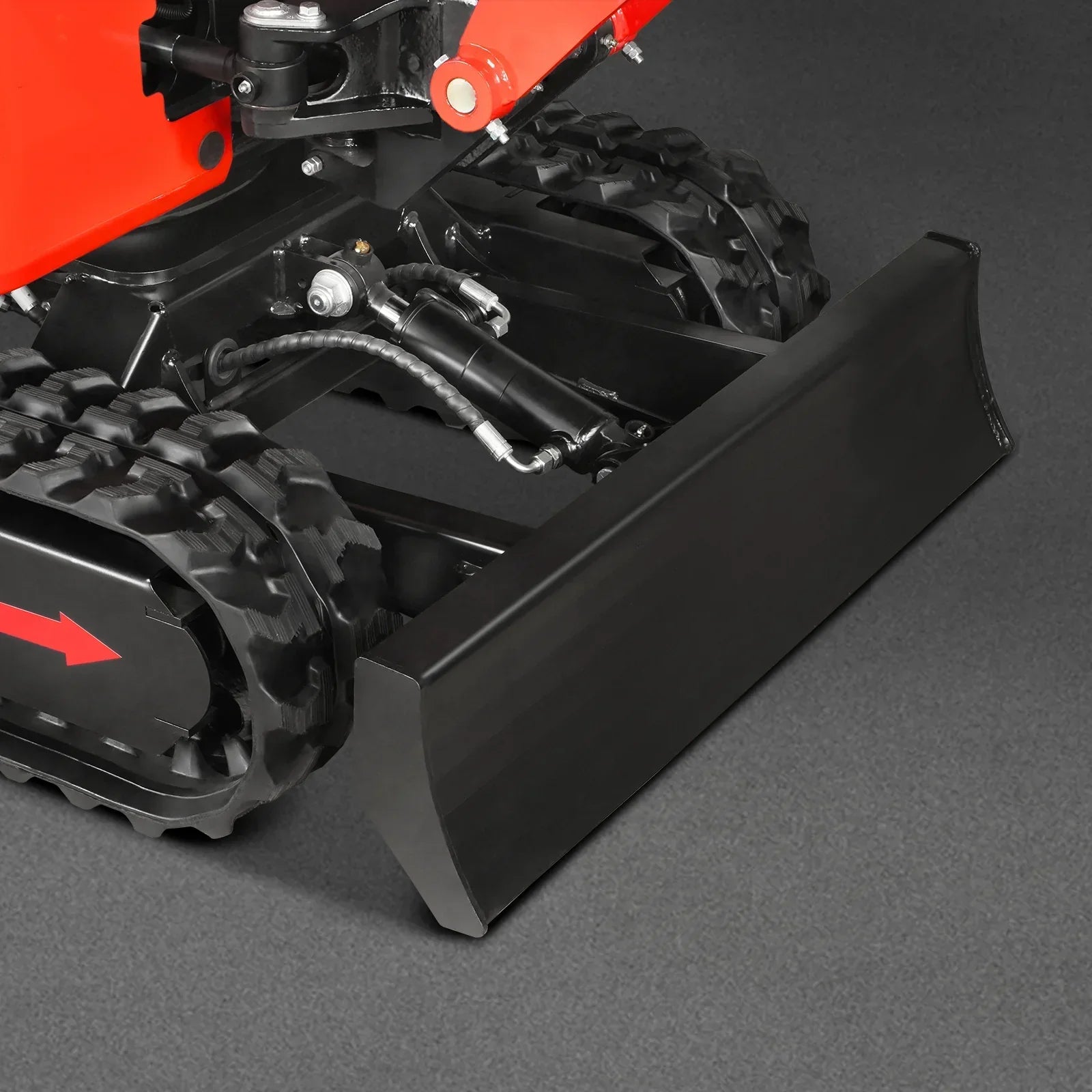

Max. Digging Radius 121 in Max. Depth Dozer Blade 7.4 in
Max. Unloading Height 81.8 in

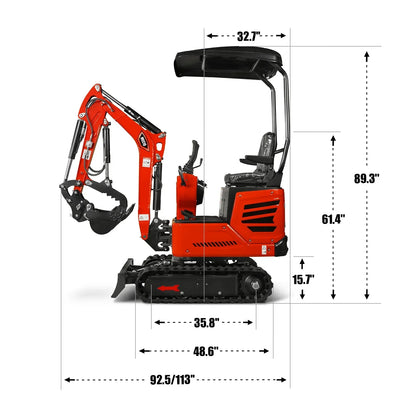

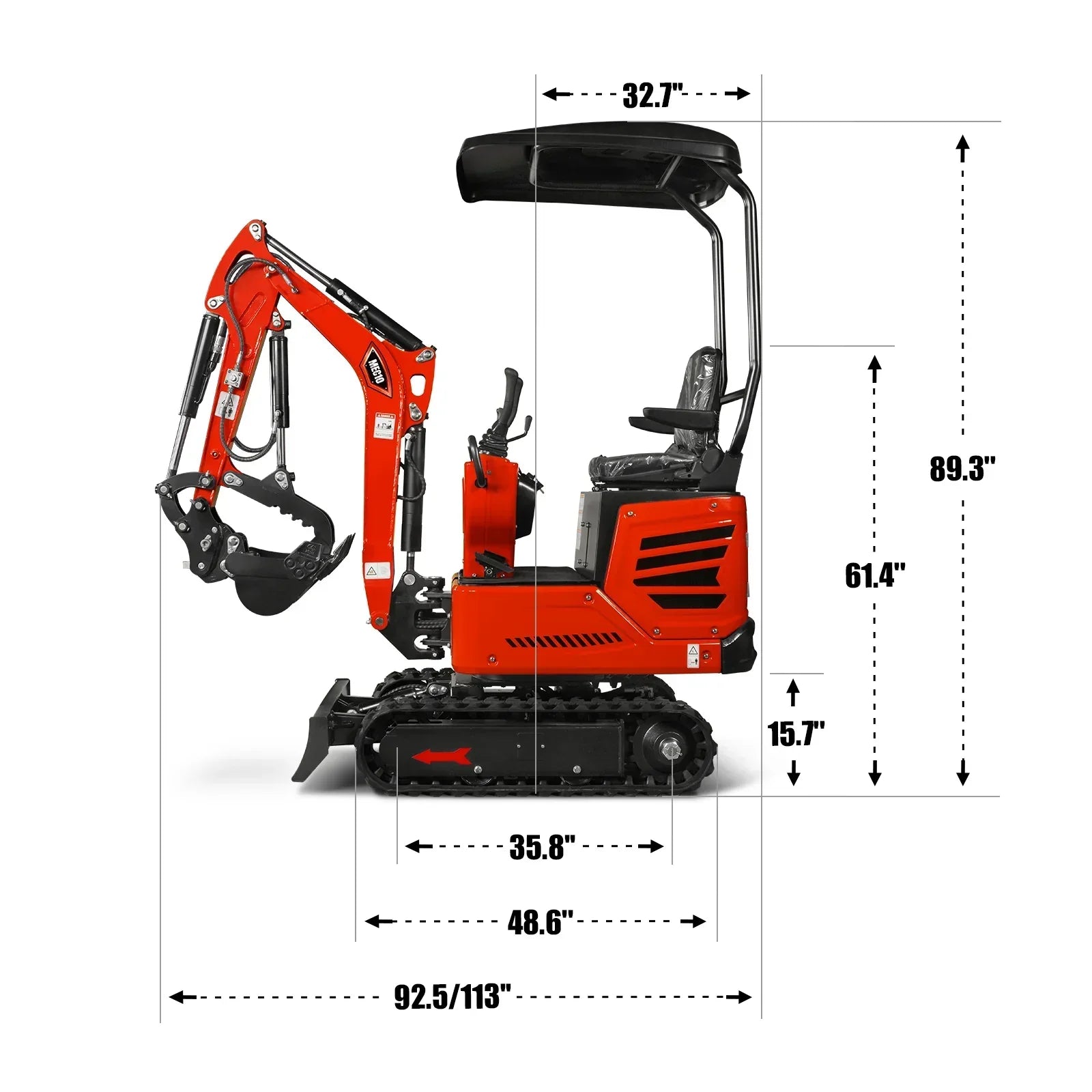

Main Dimensions

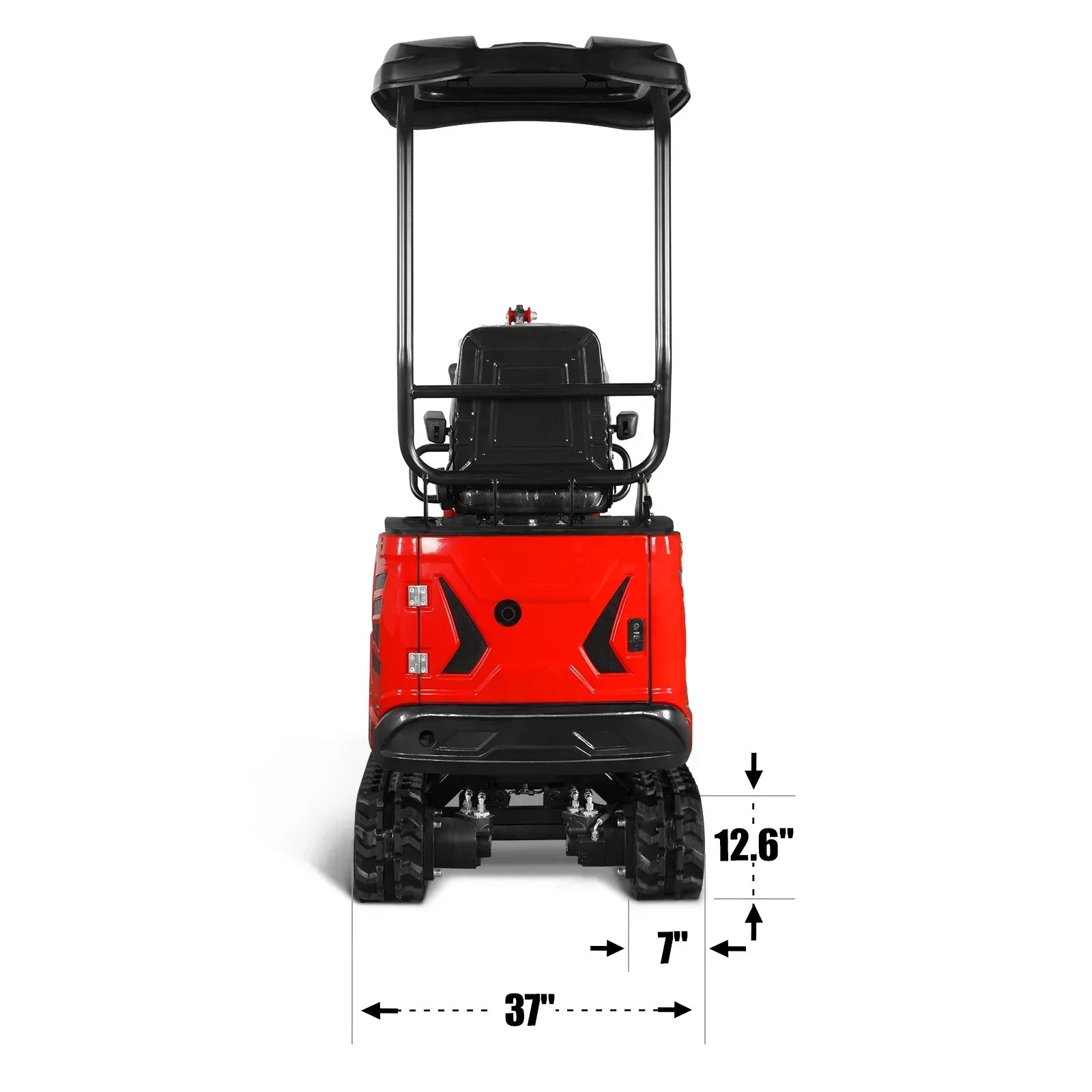

Wheel Track 35.8 in Track Height 12.6 in
Track Length 48.6 in Transportation Length 92.5/113 in

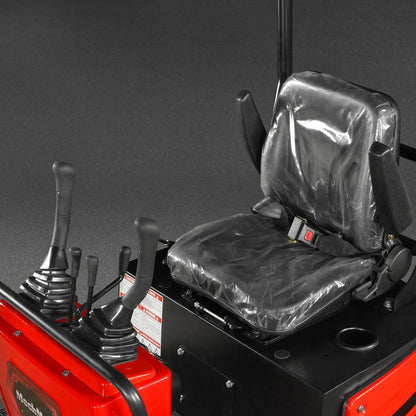

Upper Chassis Ground Clearance 15.7 in Height Of Seat To Ground 61.4 in
Counterweight Turning Radius 32.6 in Overall Height 89.3 in

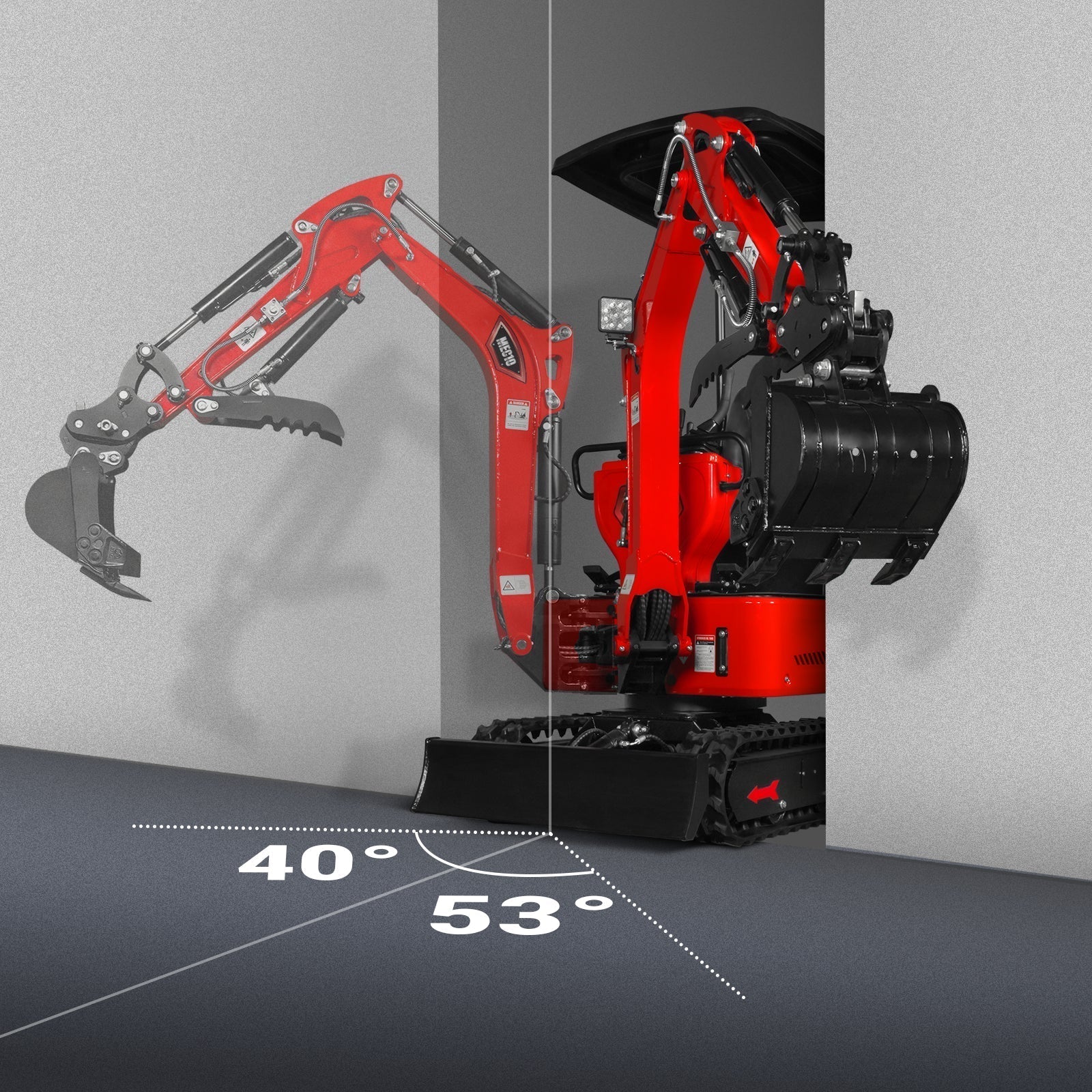

Chassis Width 37 in Boom Swing-Right 40°
Track Width 7 in Boom Swing-Left 53°

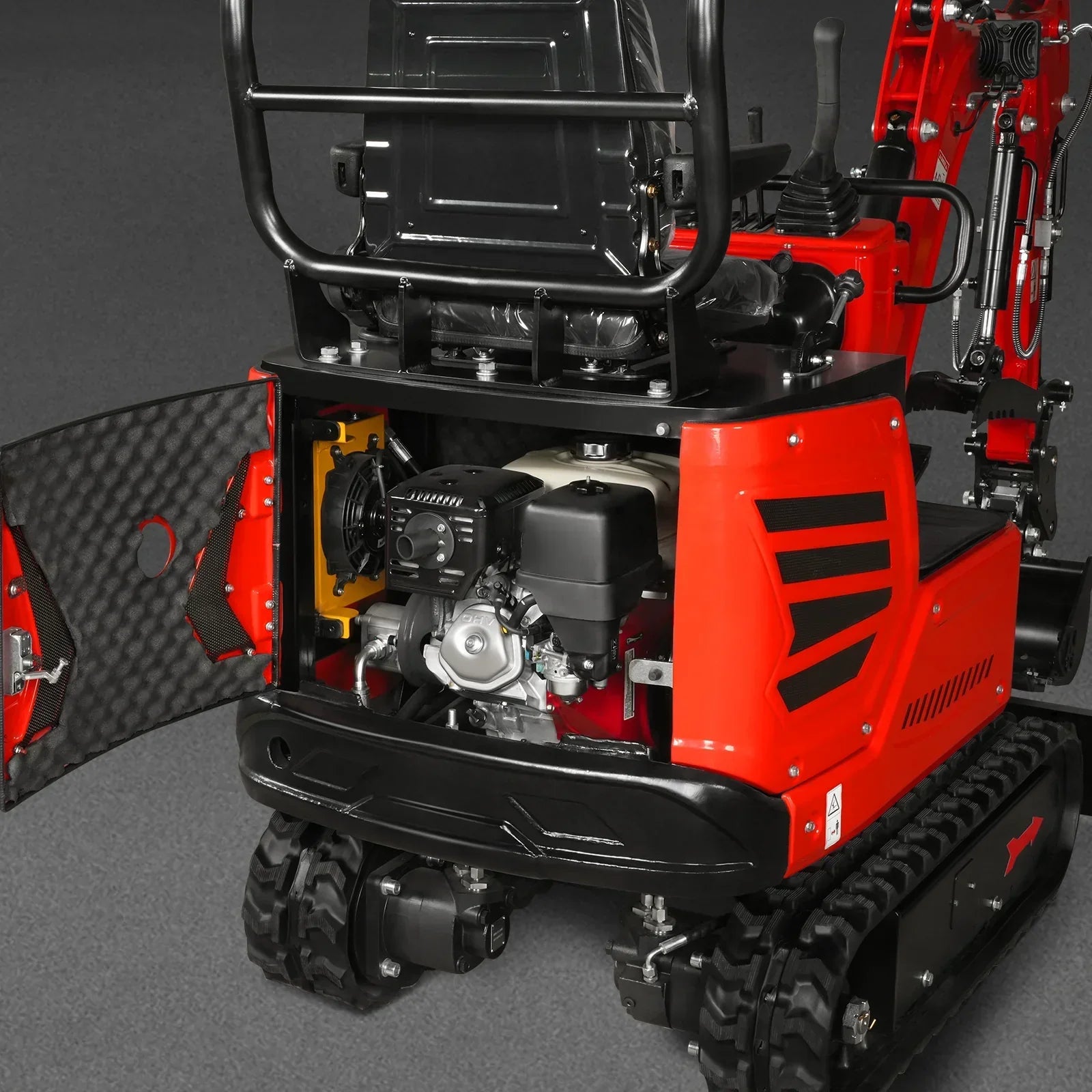

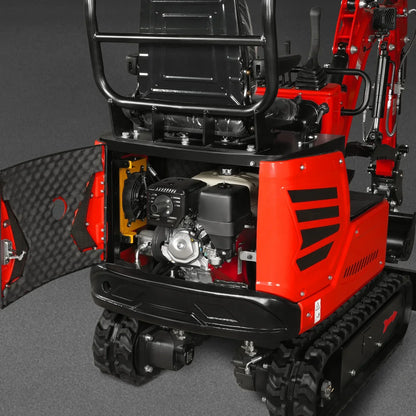

Engine
Model Honda GX390 Max. Net Torque 26.5 N.m/2500 RPM
Displacement 389 cc; 11.7 HP Fuel Tank Capacity 1.6 gal
Engine Type 4-stroke, overhead valve, single cylinder Engine Oil Capacity 0.3 gal
Start Type Electric start  Engine Oil Type 10W-30
Rated Power  8.7 KW/3600 RPM Warranty 1 Year

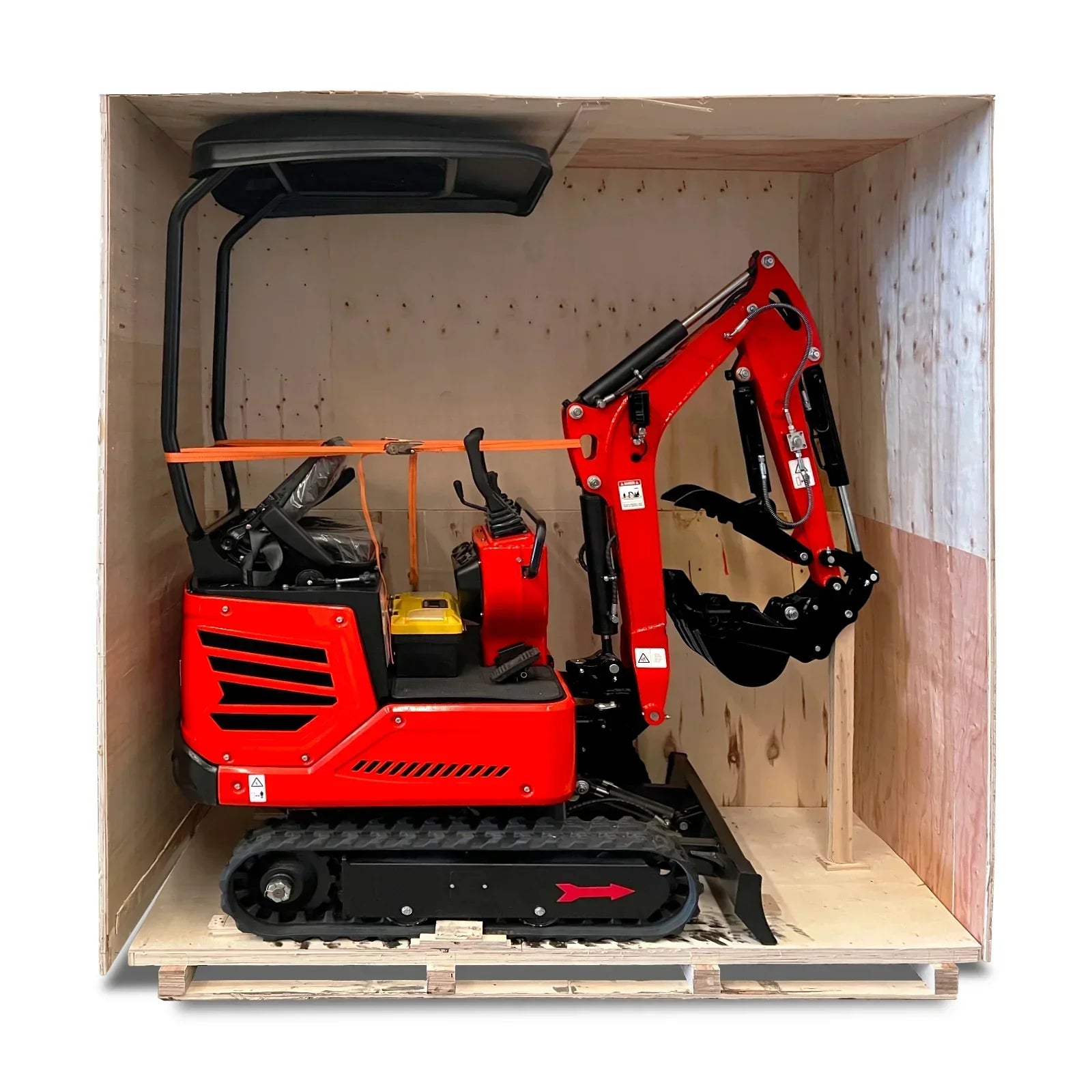

Package
Package Method Plywood Case  Weight (N.W./G.W.) 2100/2376 lb
Dimensions 91x40x98 in



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
